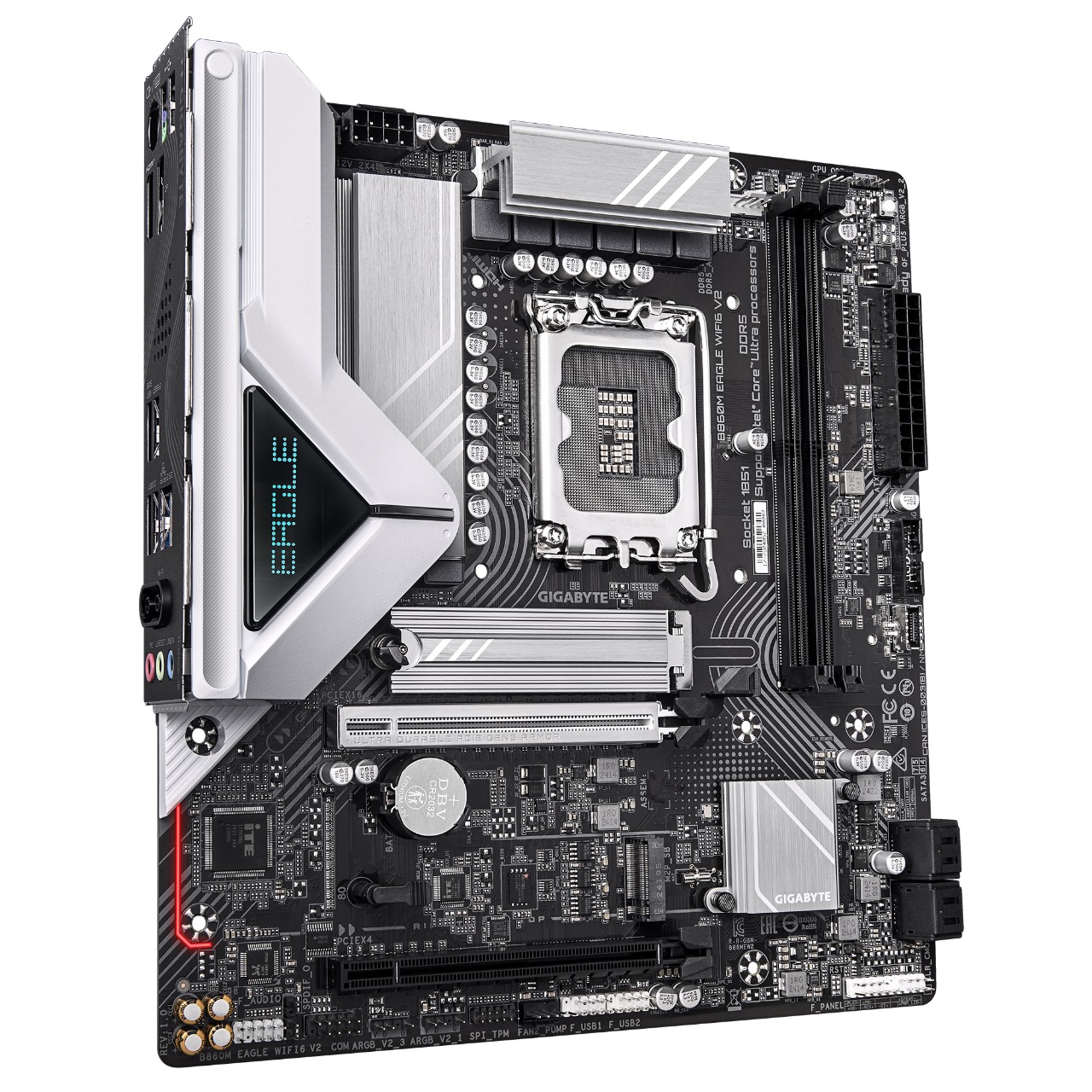

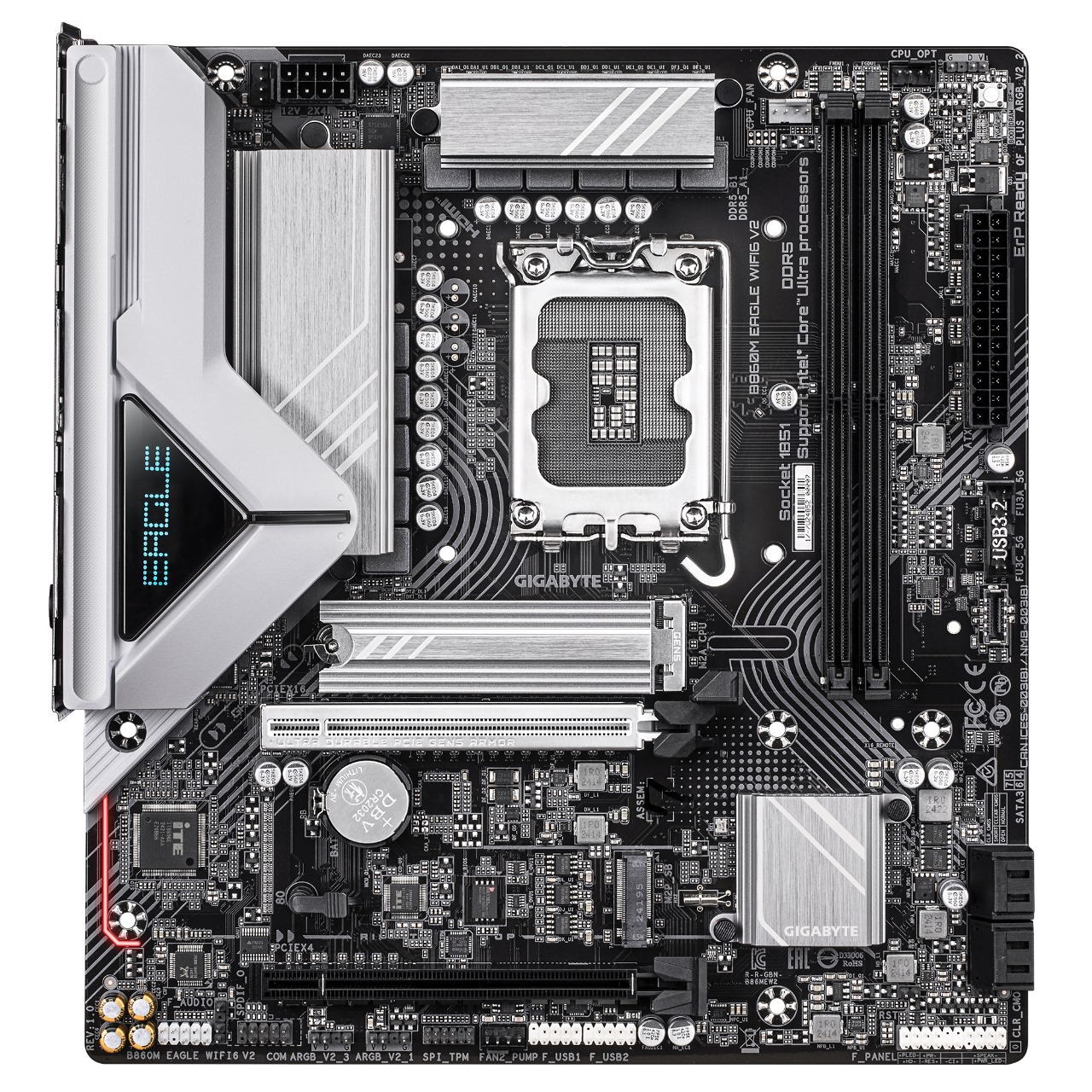

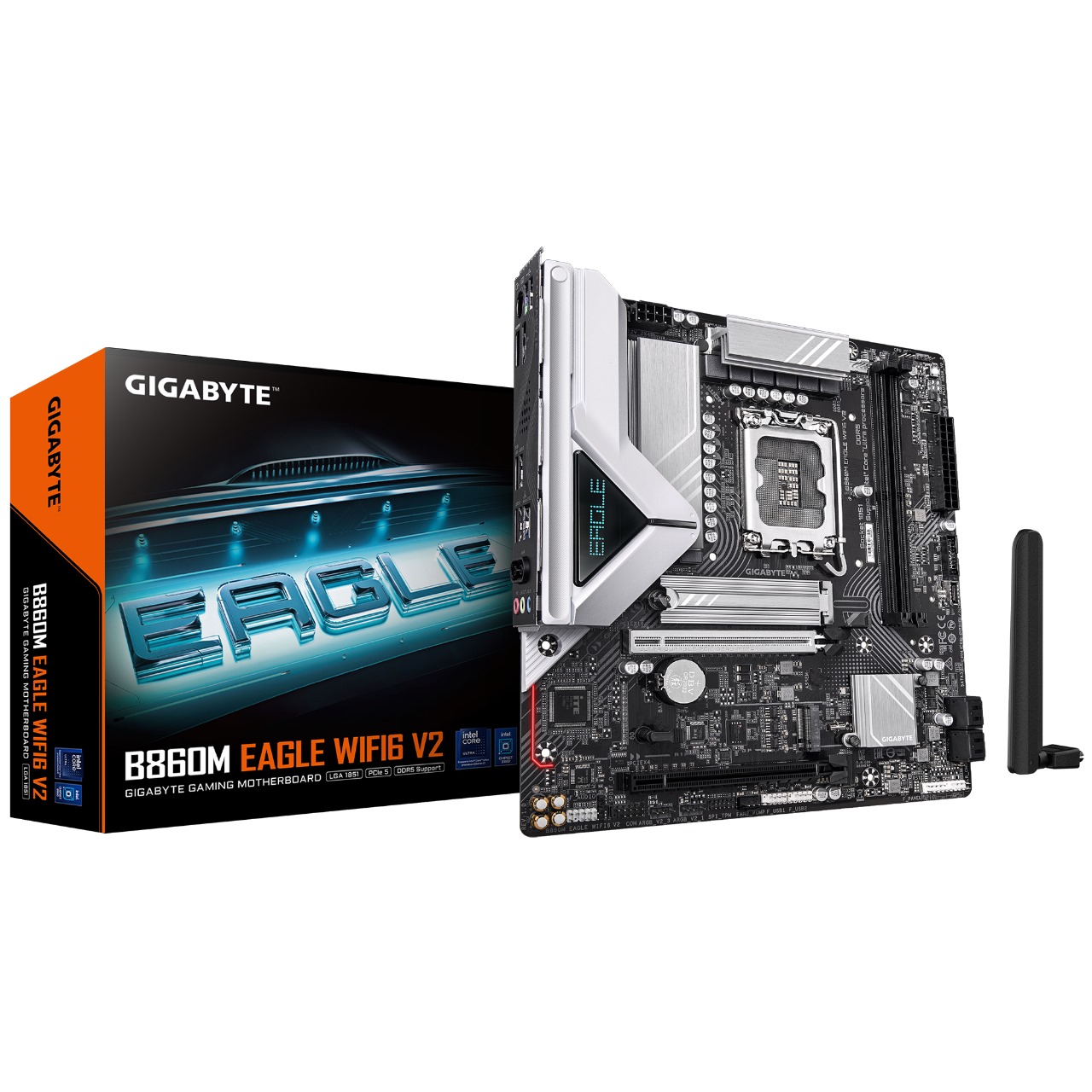

Gigabyte B860M EAGLE WIF6 V2

💻 CPU & Chipset

• Socket: LGA1851, supports Intel® Core™ Ultra processors

• Chipset: Intel® B860 Express

• L3 Cache: Varies with CPU

---

🧠 Memory

• 2× DDR5 DIMM slots, up to 128 GB (64 GB per DIMM)

• Supported speeds: DDR5 9066(O.C.) down to 5600 MT/s

• Dual-channel architecture

• Supports ECC un-buffered (non-ECC mode) & non-ECC un-buffered modules

• XMP profile support

---

🎨 Onboard Graphics

• 1× HDMI 2.1 (4096×2160 @ 60 Hz, HDCP 2.3)

• 1× DisplayPort 2.1 (3840×2160 @ 144 Hz)

• Graphics output depends on CPU capabilities

---

🔊 Audio

• Realtek® Audio CODEC, High Definition Audio

• 2/4/5.1/7.1-channel support via software

• S/PDIF Out support

---

🌐 Networking

• Realtek® 2.5GbE LAN

• Realtek® Wi-Fi 6 RTL8851BE + Bluetooth 5.3

  • Supports 2.4/5 GHz, 802.11 a/b/g/n/ac/ax, 80 MHz bandwidth

---

⚡ Expansion Slots

• CPU:

  • 1× PCIe 5.0 x16 slot (graphics card or NVMe SSD only)

• Chipset:

  • 1× PCIe 4.0 x16 slot (x4 mode)

---

💾 Storage

• 1× M.2 PCIe 5.0 x4/x2 (CPU)

• 1× M.2 PCIe 4.0 x4/x2 (chipset)

• 4× SATA 6Gb/s

• Supports RAID 0, 1, 5, 10 for SATA drives

---

🔌 USB Ports

• Rear:

  • 3× USB 3.2 Gen1

  • 3× USB 2.0

• Internal:

  • 1× USB-C 3.2 Gen1 header

  • 1× USB 3.2 Gen1 header (2 ports)

  • 2× USB 2.0 headers (4 ports total)

---

🛠 Internal Connectors

• 24-pin ATX + 8-pin 12V power

• CPU fan, pump, system fan headers

• 3× ARGB Gen2 LED headers

• 2× M.2 sockets, 4× SATA

• Front panel & audio, S/PDIF Out

• USB-C & USB 3.2 Gen1 headers

• TPM header, serial port header

• Q-Flash Plus, reset & clear CMOS jumpers

---

🔙 Rear I/O

• 1× PS/2 keyboard/mouse

• 1× HDMI, 1× DisplayPort

• 3× USB 3.2 Gen1

• 3× USB 2.0

• 2× Wi-Fi antenna connectors

• 1× RJ-45 LAN

• 3× audio jacks

---

📋 Other Features

• iTE® I/O controller chip

• Voltage, temperature, fan, and water flow monitoring

• Fan fail warning & control (depending on installed fan/pump)

• AMI UEFI BIOS, Q-Flash, Q-Flash Plus

• GIGABYTE Control Center (features vary by model)

• Norton® Internet Security (OEM)

• LAN bandwidth management software

---

🖥 Operating System Support

• Windows 11 64-bit

• Windows 10 64-bit

• Intel® NPU driver supported only on Windows 11

---

📐 Form Factor

• Micro-ATX: 24.4 cm × 22.5 cm
