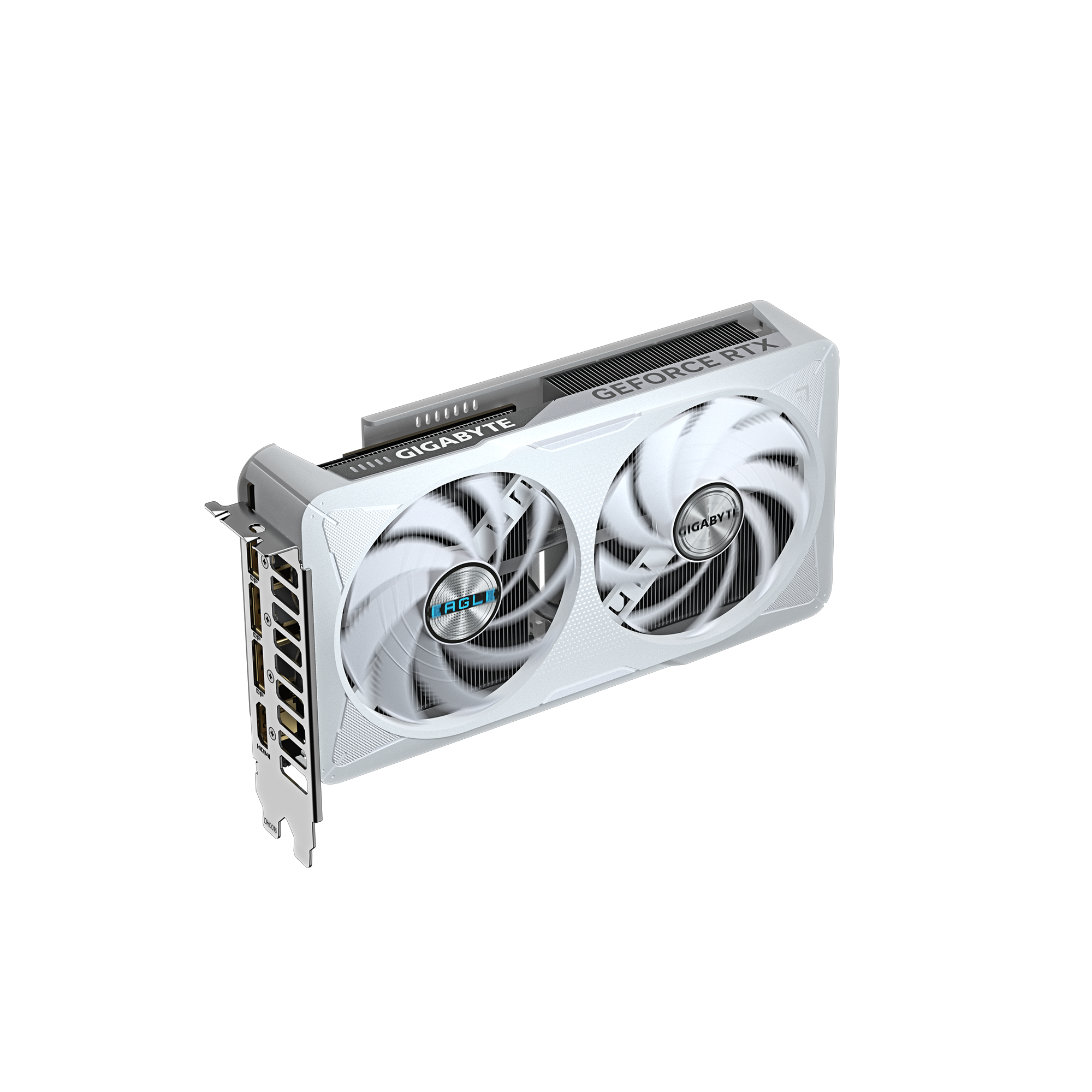

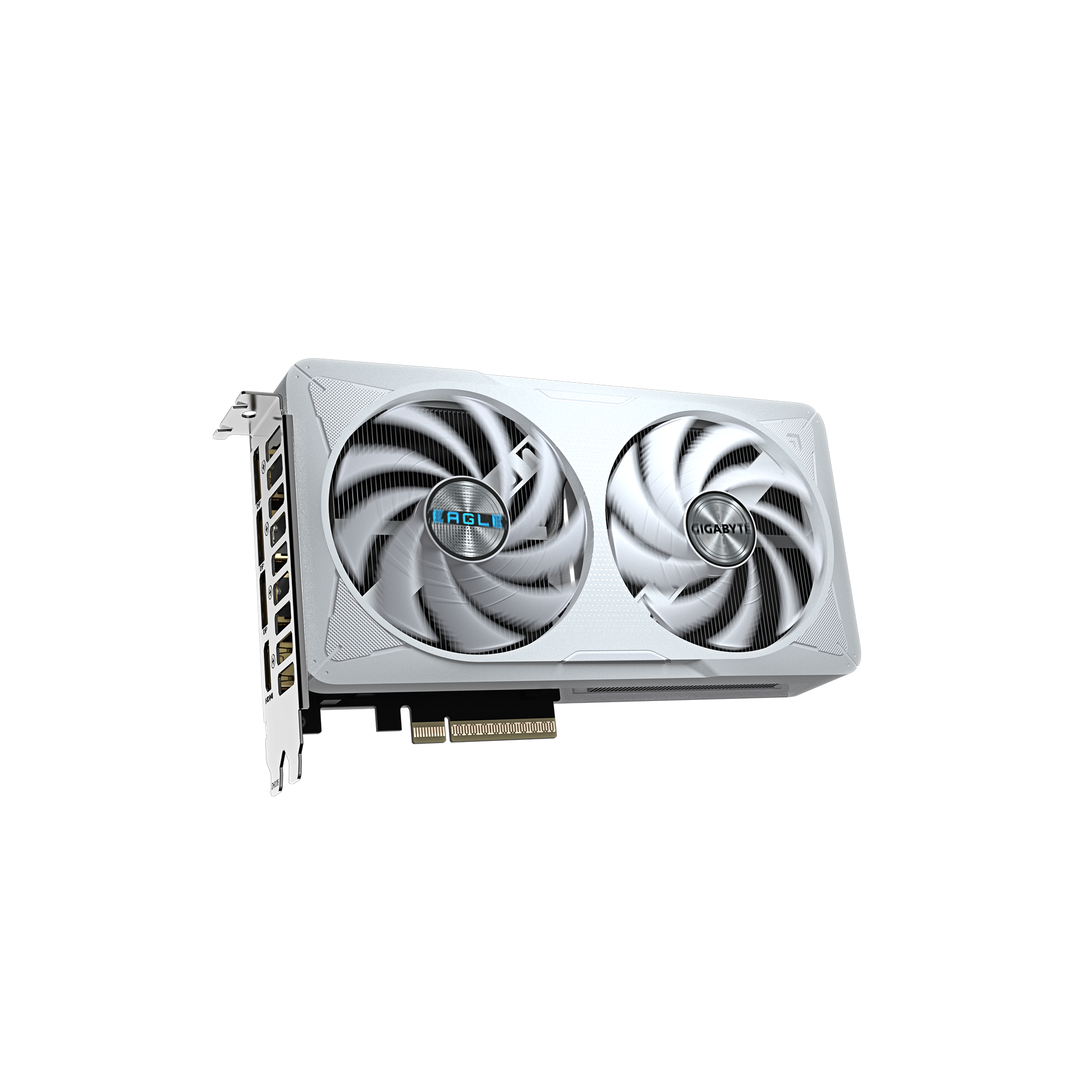

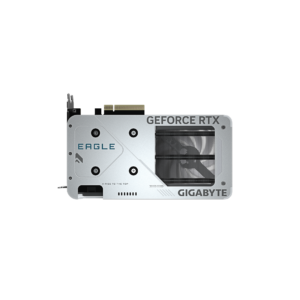

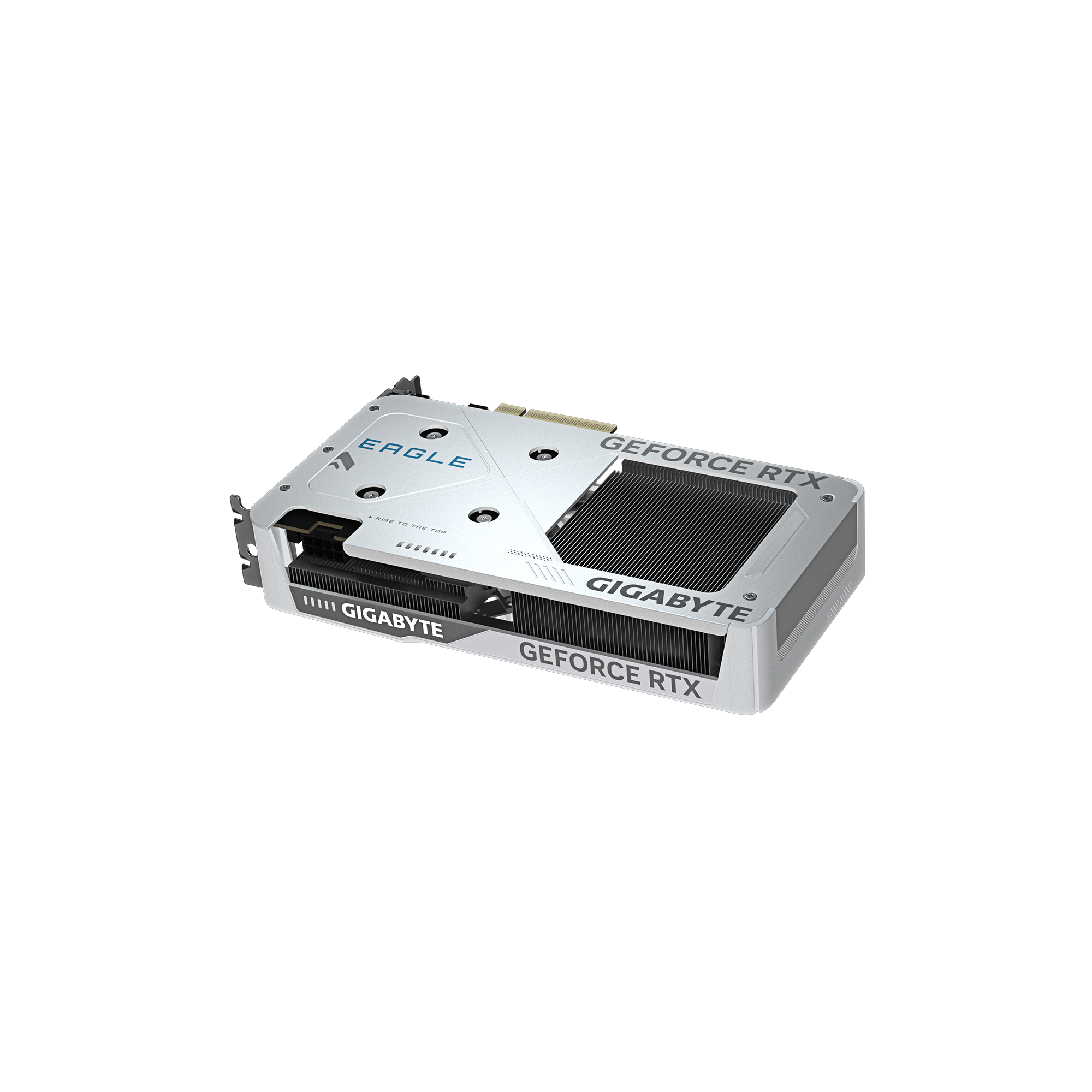

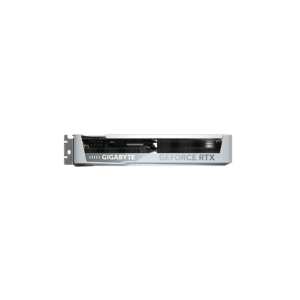

Gigabyte RTX 5060 EAGLE OC ICE 8G

Technical Specifications

General

• Graphics Processing Unit: GeForce RTX™ 5060

• PCB Form: ATX

• Card Bus: PCI Express 5.0

Performance

• Core Clock: 2550 MHz

  (Reference Card: 2497 MHz)

• CUDA® Cores: 3840

• DirectX Support: DirectX 12 API

• OpenGL Support: 4.6

• Multi-View Support: 4 Displays

• Maximum Digital Resolution: 7680 × 4320

Memory

• Memory Size: 8GB

• Memory Type: GDDR7

• Memory Clock: 28 Gbps

• Memory Bus: 128-bit

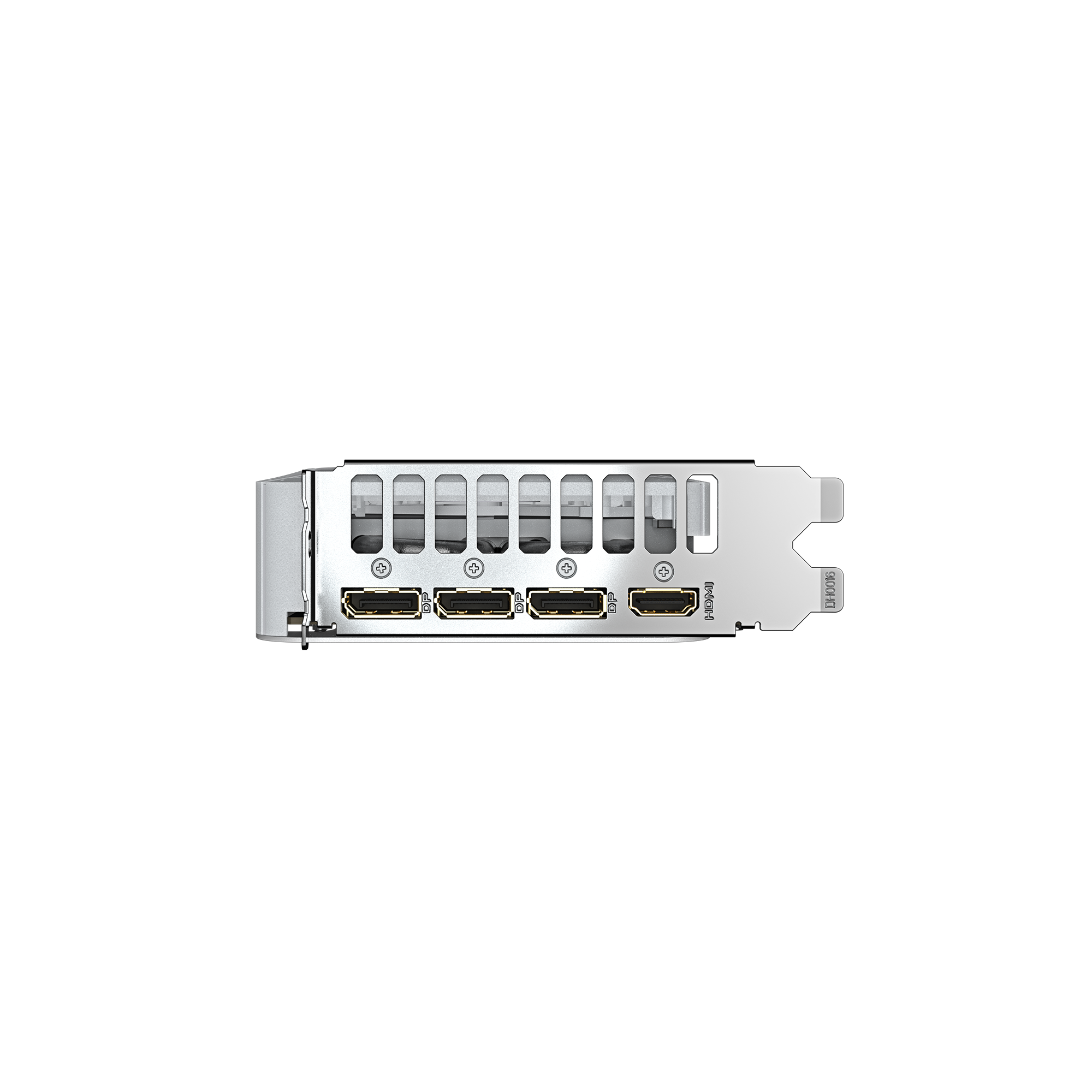

Connectivity

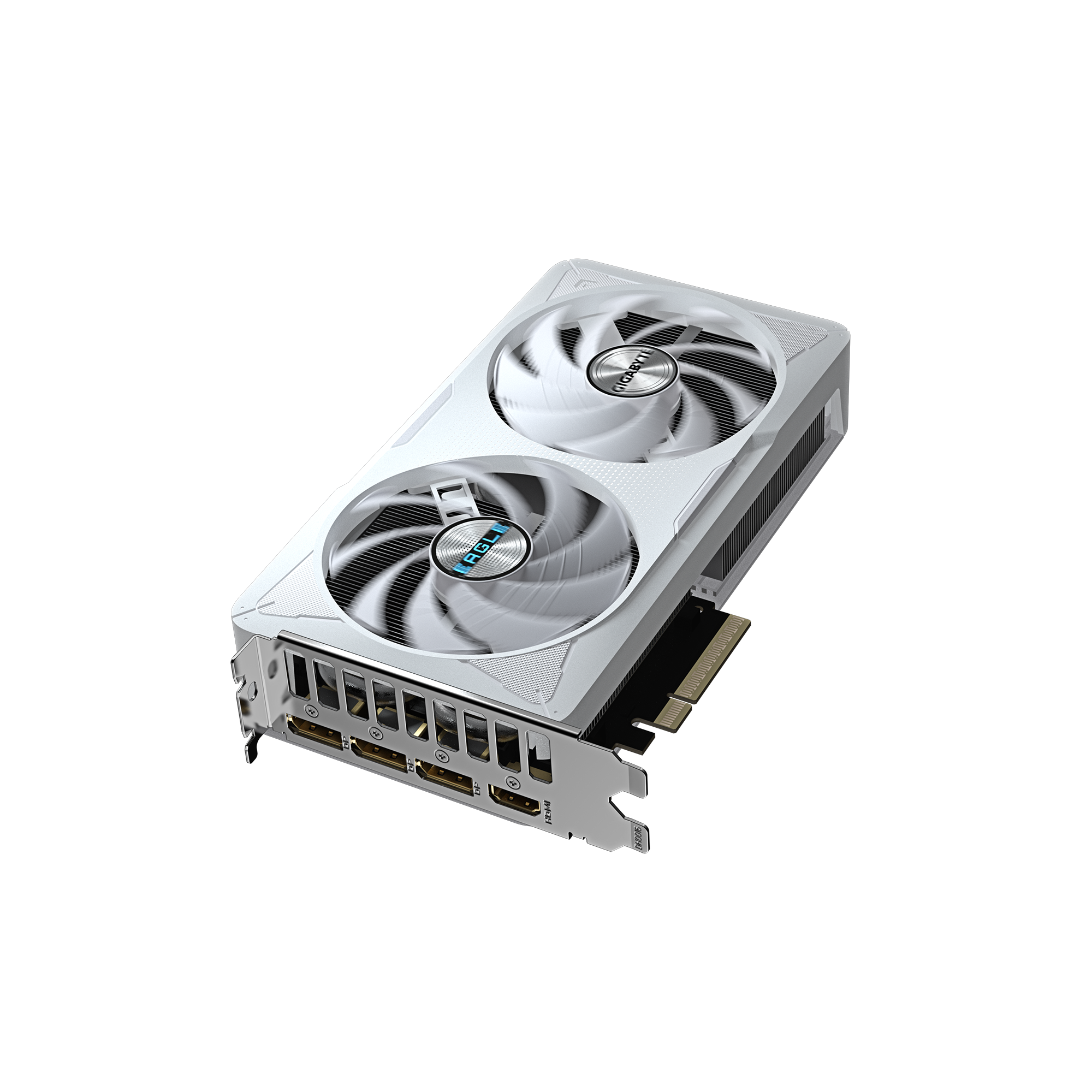

• DisplayPort: 3 × DisplayPort 2.1b

• HDMI: 1 × HDMI 2.1b

Power Requirements

• Recommended PSU: 550W

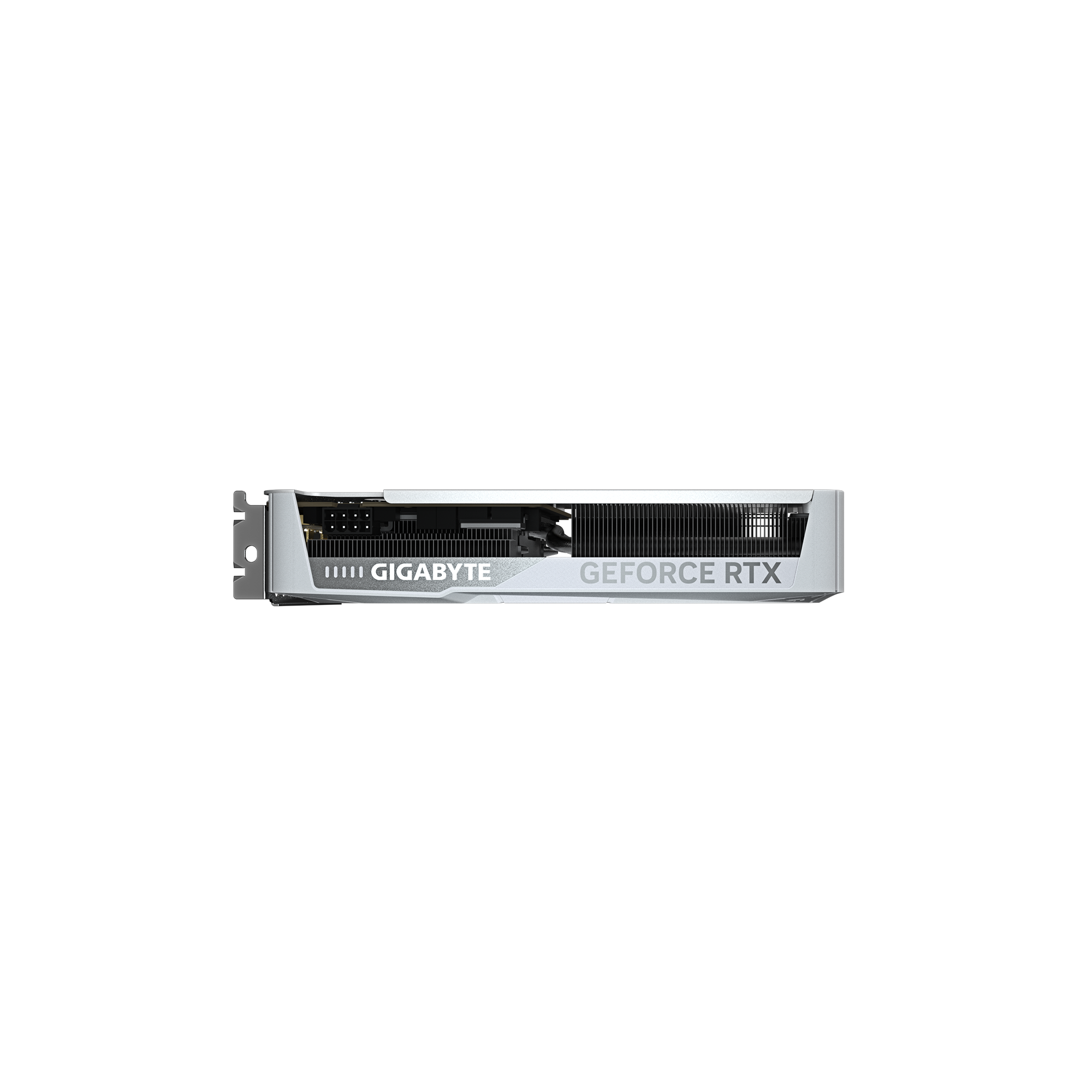

• Power Connectors: 1 × 8-pin

Physical Specifications

• Card Dimensions:

  • Length: 208 mm

  • Width: 120 mm

  • Height: 40 mm

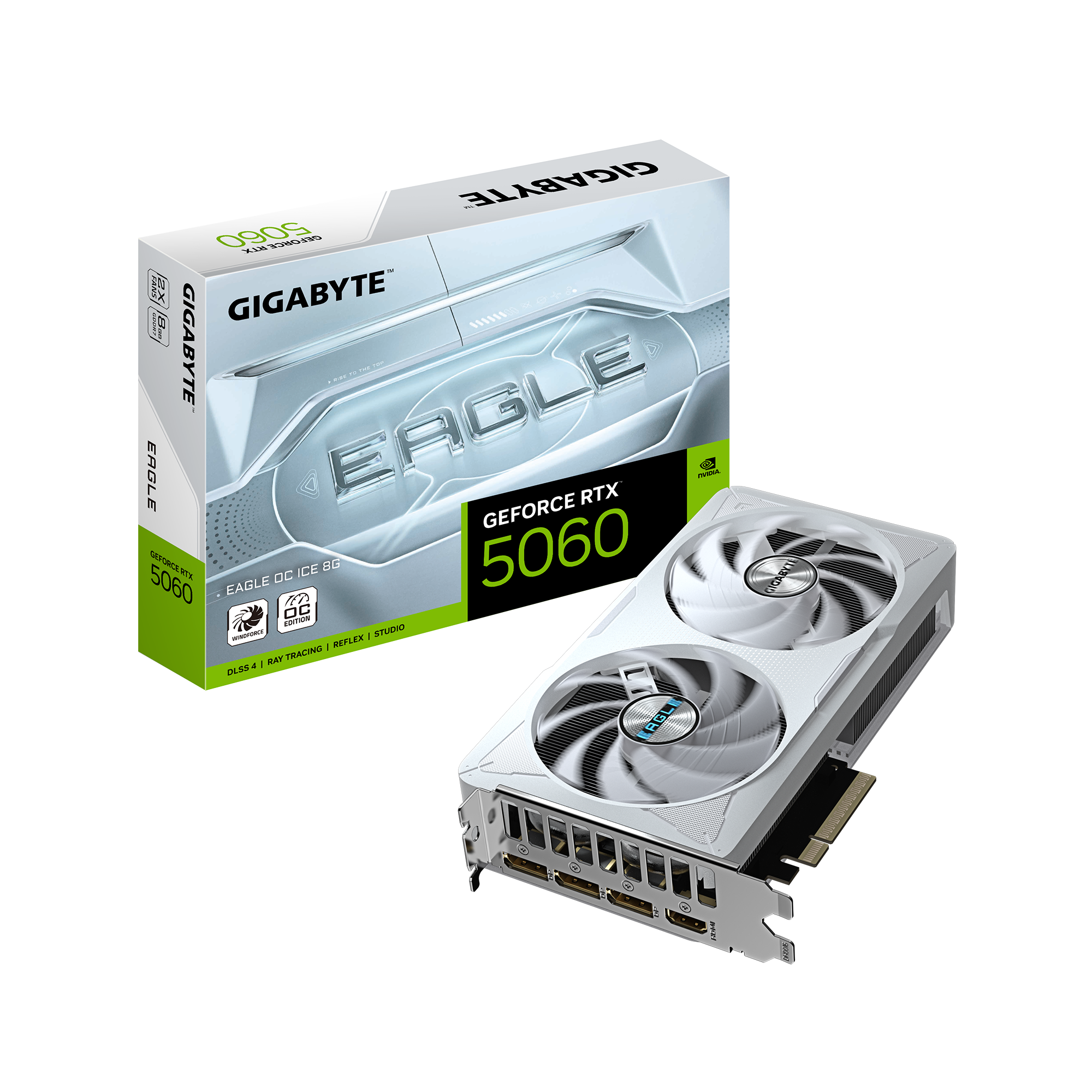

Accessories

• Included: Quick Guide
