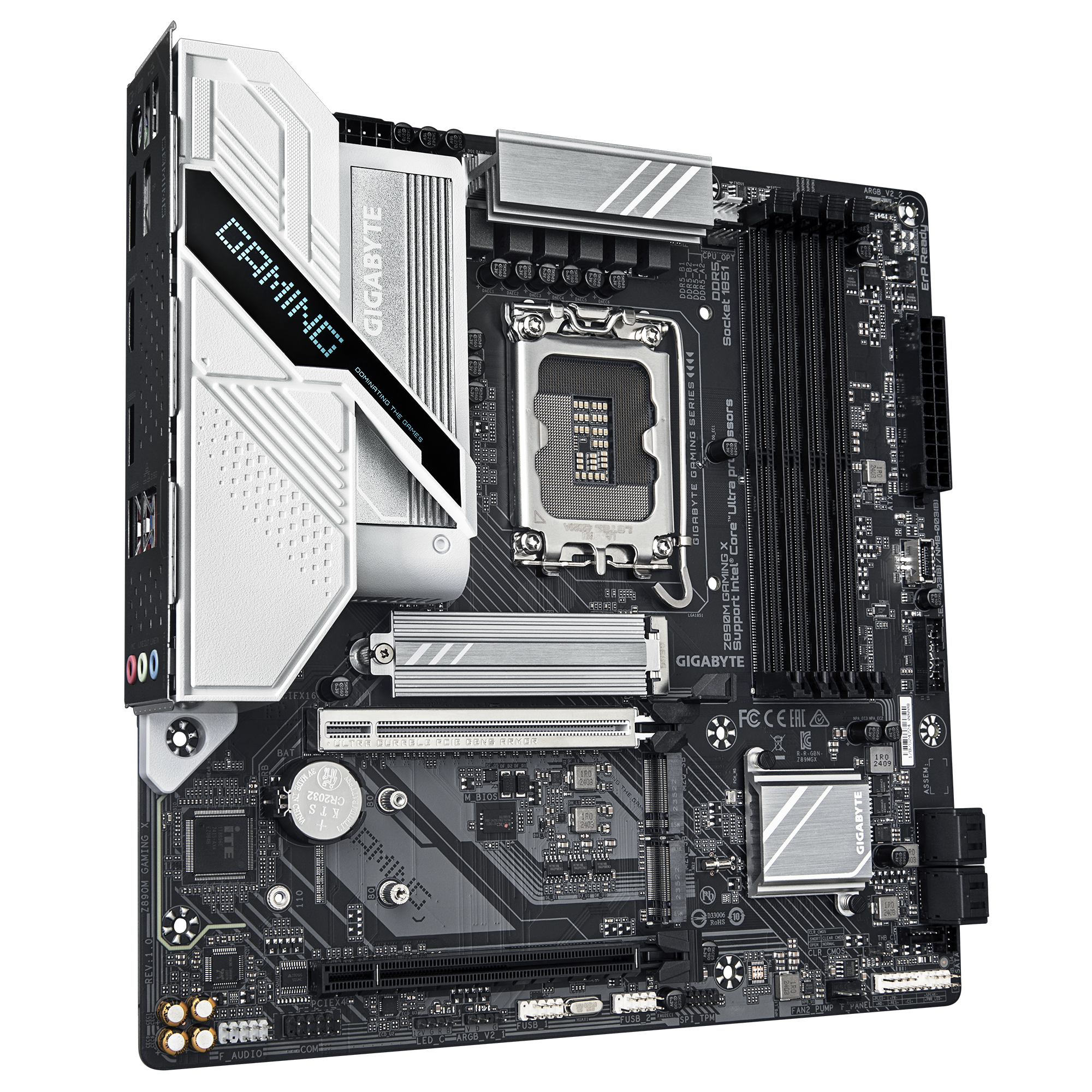

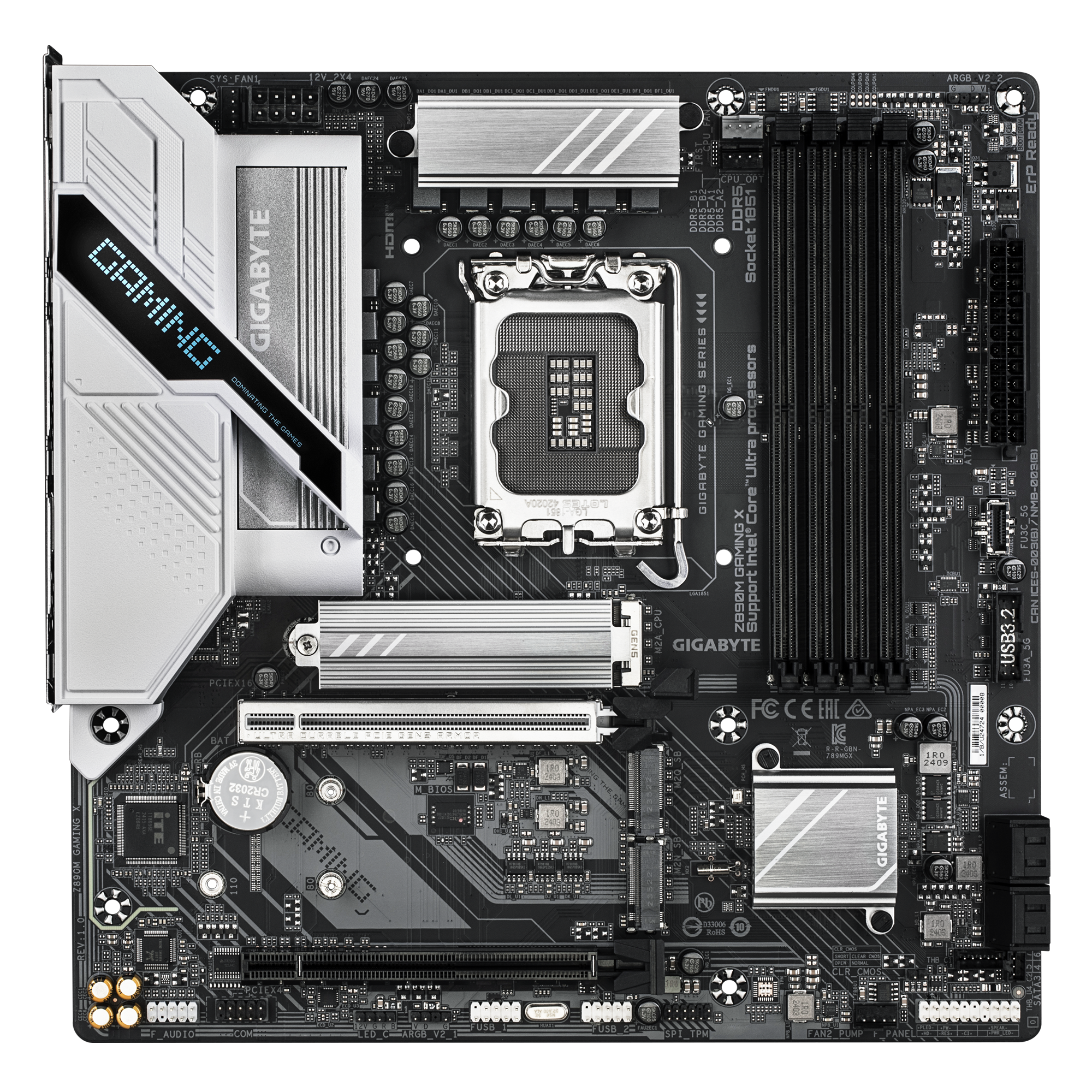

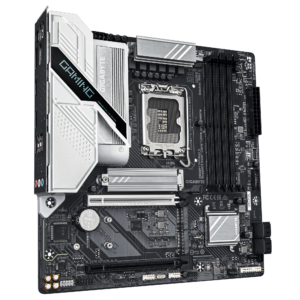

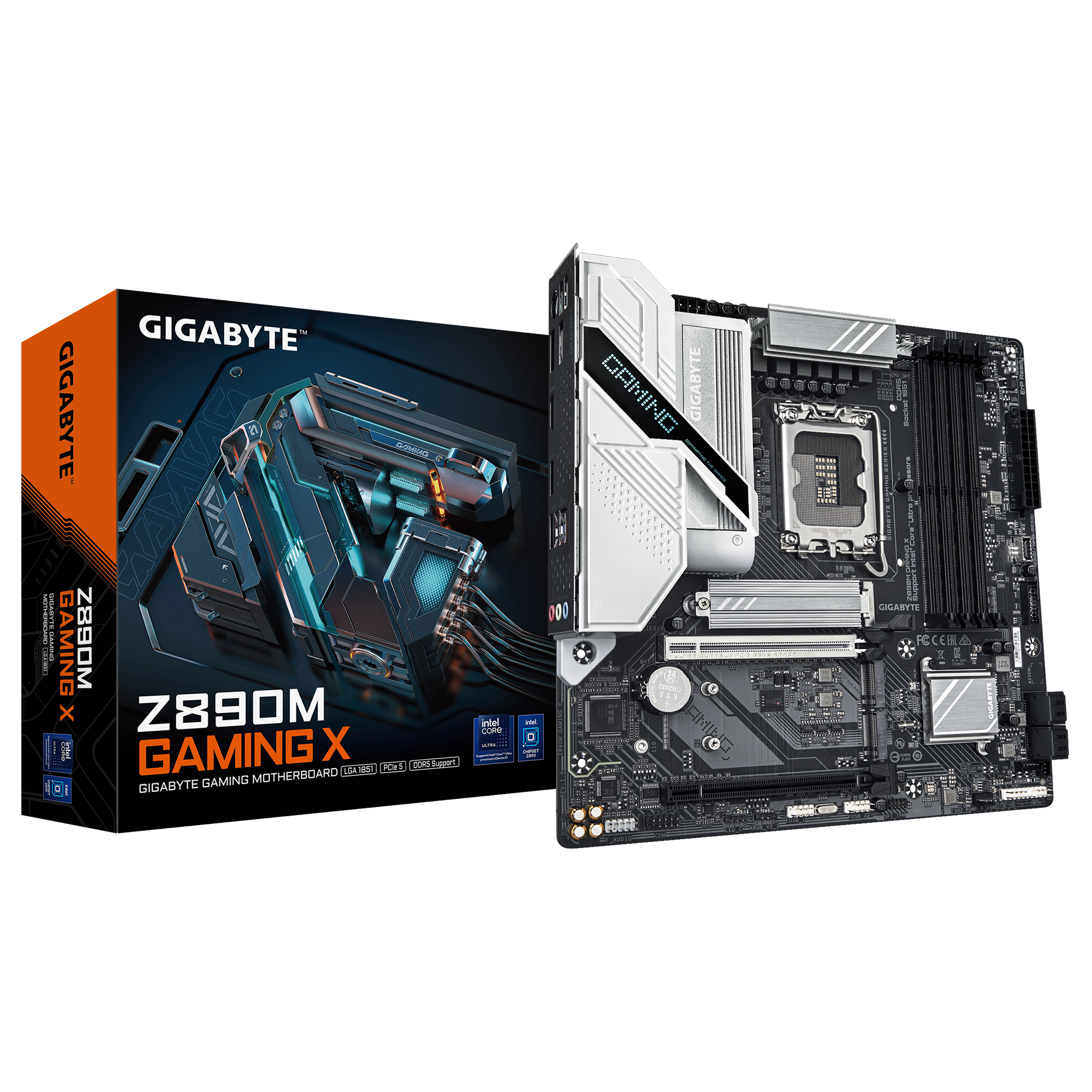

Gigabyte Z890M GAMING X

Technical Specifications

General

• Socket: LGA1851
• Chipset: Intel® Z890 Express
• Form Factor: Micro ATX (24.4 × 24.4 cm)
• BIOS: 256 Mbit AMI UEFI BIOS

CPU Support

• Supported Processors: Intel® Core™ Ultra Processors (Series 2)
• Cache: L3 Cache varies by CPU

Memory

• Memory Type: DDR5
• Speed Support:
  9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s
• Max Capacity: 256GB
• DIMM Slots: 4 × DDR5
• Channel Support: Dual Channel
• ECC Support: ECC (non-ECC mode) & Non-ECC DIMMs
• XMP Support: Yes
• CUDIMM Support: Yes

Integrated Graphics

• Graphics Support: Intel® Integrated Graphics (CPU dependent)
• HDMI:
  • 1 × HDMI 2.1
  • Max Resolution: 4096 × 2160 @ 60Hz
• DisplayPort:
  • 2 × DisplayPort 2.1
  • Max Resolution: 4096 × 2304 @ 60Hz
• Multi-Display Support: Up to 3 Displays

Audio

• Audio Chip: Realtek® Audio CODEC
• Channels: 2 / 4 / 5.1 / 7.1-channel High Definition Audio

LAN

• Ethernet: Realtek® 2.5GbE LAN (2.5 / 1 / 0.1 Gbps)

Expansion Slots

• CPU:
  • 1 × PCIe 5.0 x16 slot
• Chipset:
  • 1 × PCIe 4.0 x16 slot (x4 mode)

Storage

• M.2 (CPU):
  • 1 × PCIe 5.0 x4/x2 (2580/2280)
• M.2 (Chipset):
  • 2 × PCIe 4.0 x4/x2 (one supports 25110 form factor)
• SATA:
  • 4 × SATA 6Gb/s
• RAID Support: RAID 0, 1, 5, 10 (NVMe & SATA)

USB

• Rear Panel:
  • 3 × USB 3.2 Gen 1
  • 2 × USB 2.0
• Internal Headers:
  • 1 × USB Type-C (USB 3.2 Gen 1)
  • 2 × USB 3.2 Gen 1 ports
  • 4 × USB 2.0 ports

Internal I/O Connectors

• 1 × 24-pin ATX Power
• 1 × 8-pin CPU Power
• 1 × CPU Fan Header
• 1 × CPU Pump Header
• 1 × System Fan Header
• 1 × System Pump Header
• 2 × ARGB Gen2 Headers
• 1 × RGB Header
• 3 × M.2 Slots
• 4 × SATA Ports
• 1 × Front Panel Header
• 1 × Front Audio Header
• 1 × USB-C Header
• 1 × USB 3.2 Header
• 2 × USB 2.0 Headers
• 2 × Thunderbolt Add-in Card Headers
• 1 × TPM Header
• 1 × Serial Port Header
• 1 × Clear CMOS Jumper

Back Panel I/O

• 1 × PS/2 Port
• 3 × USB 3.2 Gen 1
• 2 × USB 2.0
• 1 × HDMI
• 2 × DisplayPort
• 1 × RJ-45 LAN
• 3 × Audio Jacks

Hardware Monitoring

• Voltage Detection
• Temperature Detection
• Fan Speed Detection
• Water Cooling Flow Detection
• Fan Fail Warning
• Fan Speed Control

Software & Features

• GIGABYTE Control Center (GCC)
• Q-Flash
• Smart Backup

Operating System

• Windows 11 (64-bit)
• Windows 10 (64-bit)
• Intel NPU features supported on Windows 11 only

Bundle

• Norton® Internet Security (OEM)
• LAN Bandwidth Management Software
