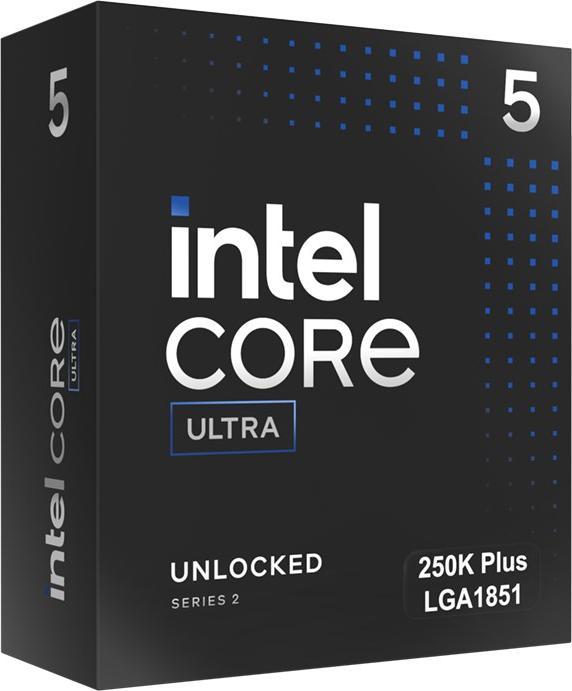

Intel Core Ultra 5 processor 250K Plus

Technical Specifications

General

• Brand: Intel
• Series: Core™ Ultra 5
• Model: 250K
• Product Collection: Intel® Core™ Ultra Processors (Series 2)
• Code Name: Arrow Lake
• Socket: FCLGA1851
• Unlocked Processor: Yes
• Launch Segment: Desktop

---

CPU Specifications

• Total Cores: 14
  • Performance Cores (P-Cores): 6
  • Efficient Cores (E-Cores): 8
• Total Threads: 14
• Max Turbo Frequency: Up to 5.30 GHz
• Intel® Smart Cache: 30 MB
• Processor Base Power: 125W
• Maximum Turbo Power: 182W

---

Memory Specifications

• Maximum Memory Size: 256GB
• Memory Types: DDR5 Up to 6400 MT/s
• Memory Channels: 2
• ECC Memory Support: No

---

Integrated Graphics

• Graphics Processor: Intel® Graphics
• Graphics Outputs:
  • DisplayPort 2.1
  • HDMI 2.1
  • eDP 1.4b
• Maximum Displays Supported: 4
• Intel® Quick Sync Video: Yes
• AV1 Encode/Decode: Yes
• H.264 Encode/Decode: Yes
• H.265 (HEVC) Encode/Decode: Yes

---

AI Capabilities

• Intel® AI Boost (NPU): Yes
• Overall AI Performance: Up to 36 TOPS
• Intel® Deep Learning Boost: Yes
• Supported AI Frameworks: OpenVINO™, WindowsML, DirectML, ONNX Runtime, WebNN

---

Expansion Options

• PCI Express Revision: PCIe 5.0 & PCIe 4.0
• Maximum PCIe Lanes: 24
• Intel® Thunderbolt™ 4: Supported
• DMI Revision: 4.0

---

Advanced Technologies

• Intel® Turbo Boost Technology 2.0: Yes
• Intel® Thread Director: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Gaussian & Neural Accelerator: Supported
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes

---

Security & Reliability

• Intel® Threat Detection Technology: Yes
• Intel® AES New Instructions: Yes
• Intel® Secure Key: Yes
• Intel® Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel® Boot Guard: Yes

---

Thermal & Package

• Socket Compatibility: FCLGA1851
• Maximum Operating Temperature: 105°C
• Package Size: 45 × 37.5 mm

---

Compatibility

Compatible With:

• Intel® 800 Series Motherboards
• Intel® Z890 Motherboards
• DDR5 Memory Platforms
• Windows 11 64-bit Systems
