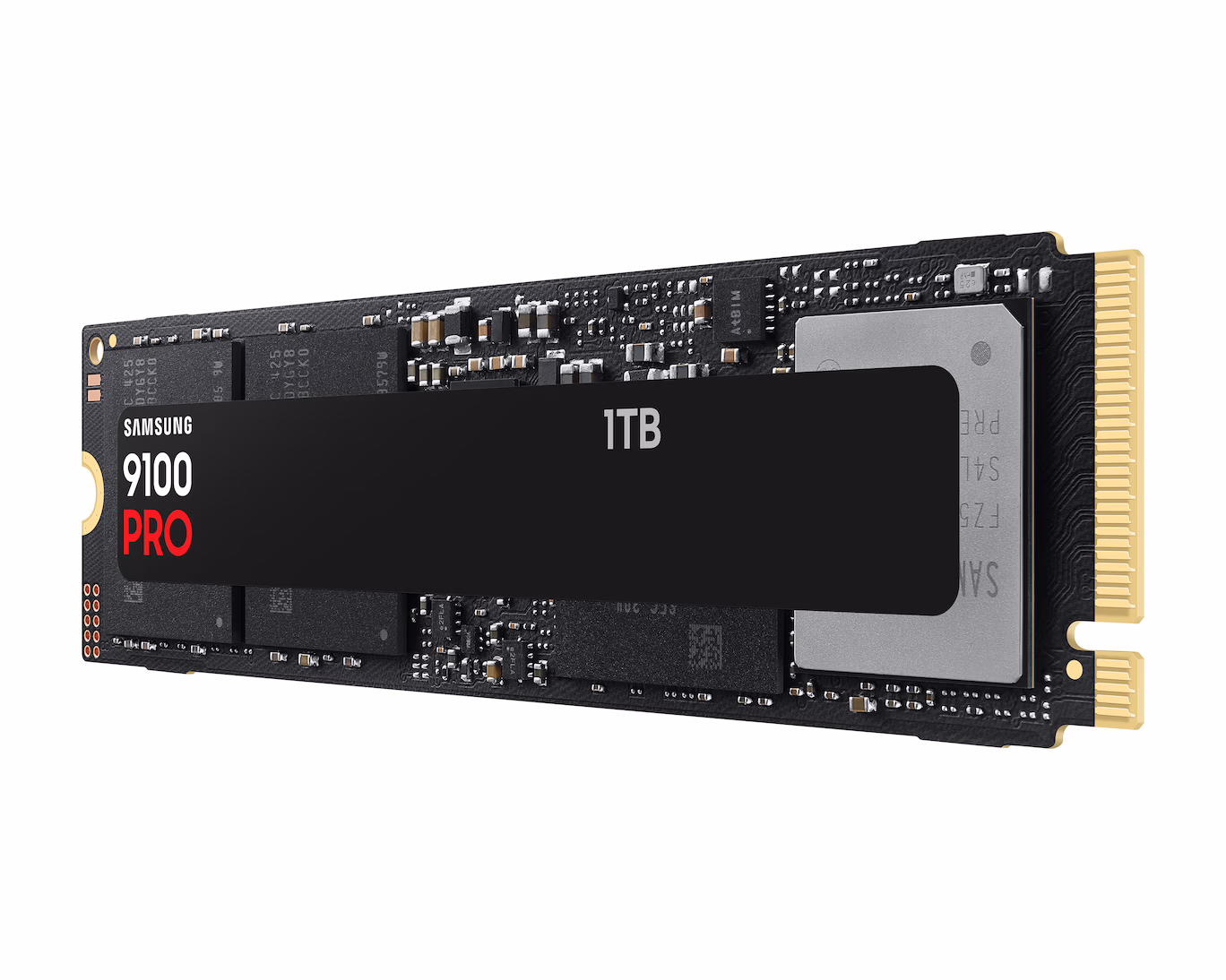

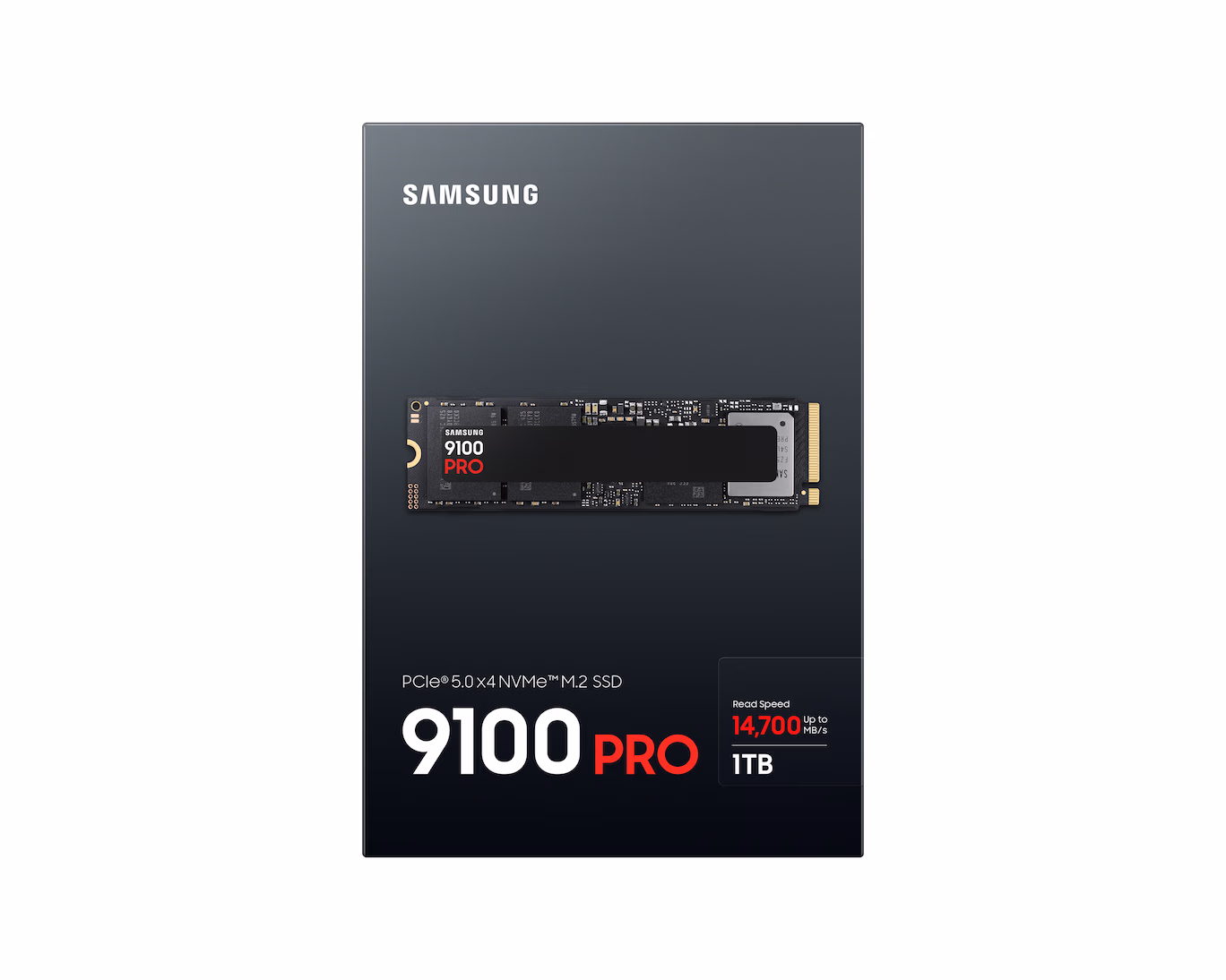

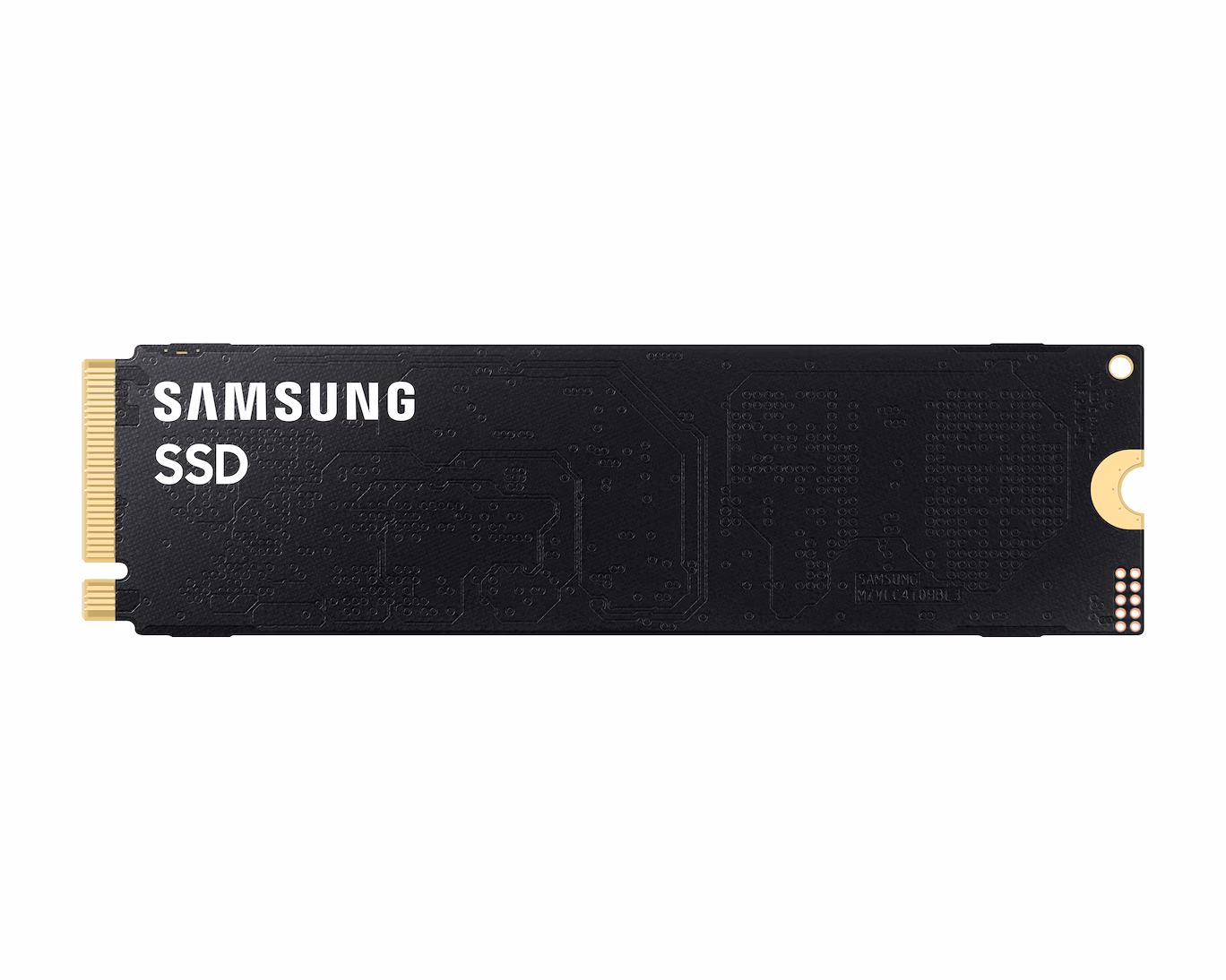

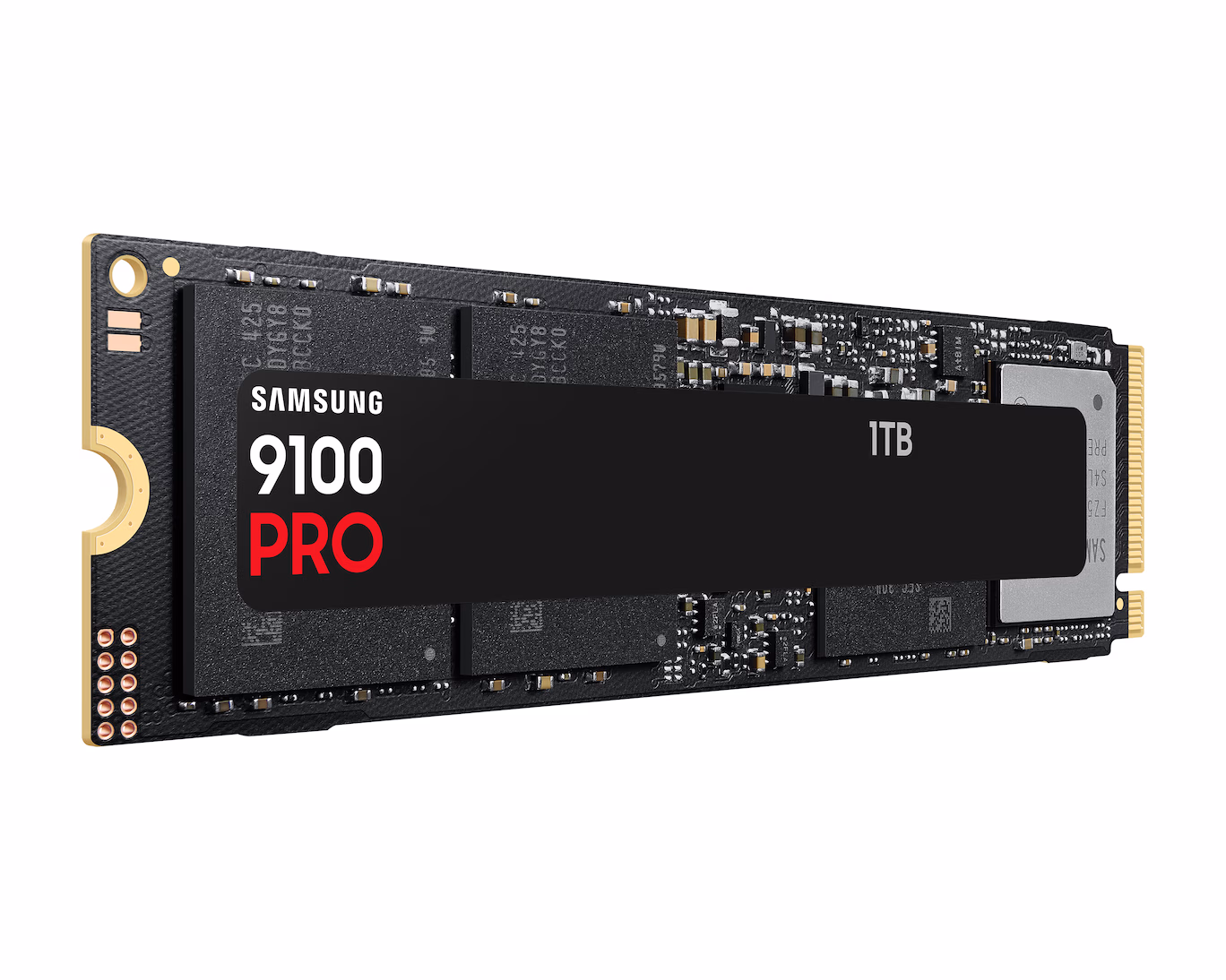

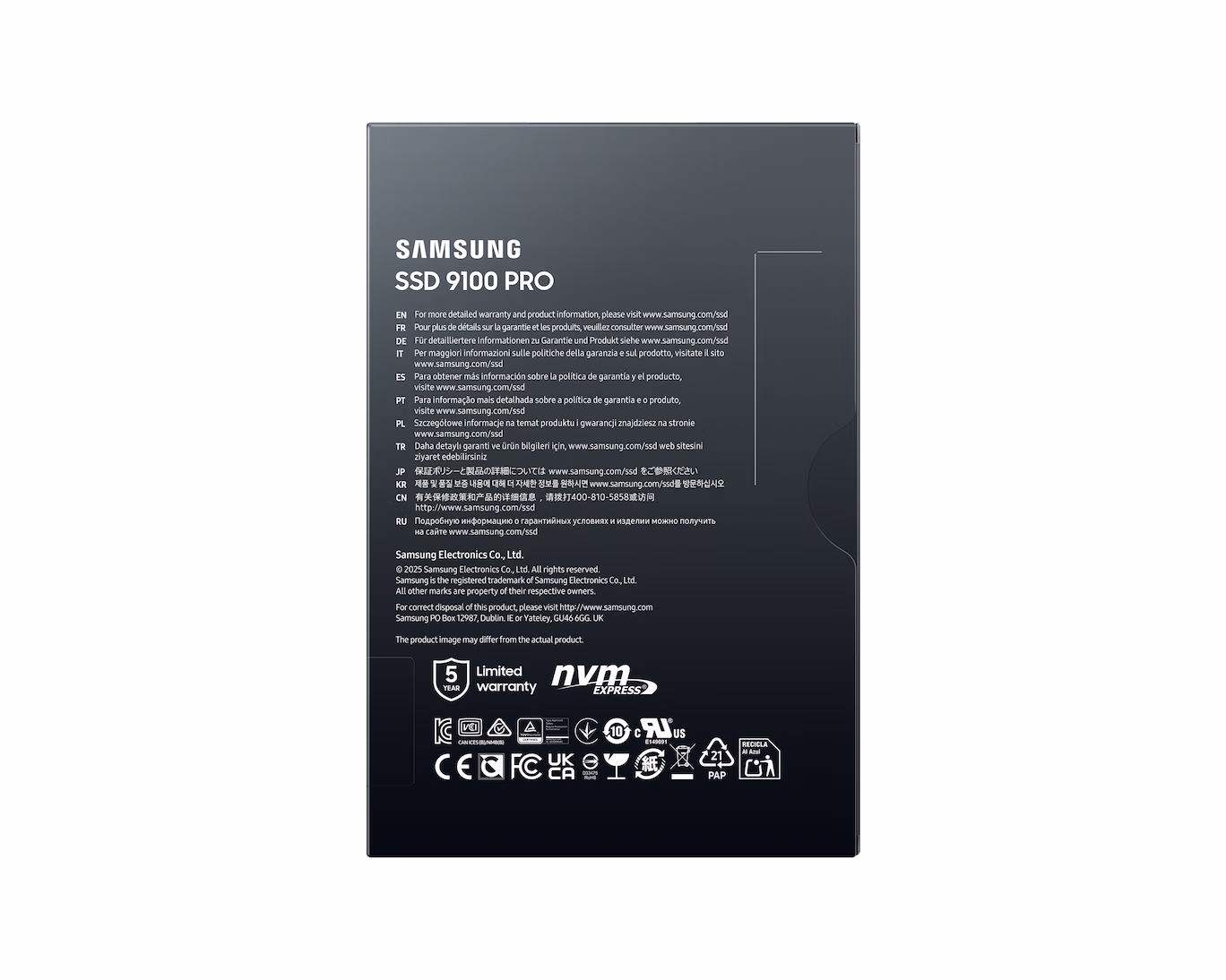

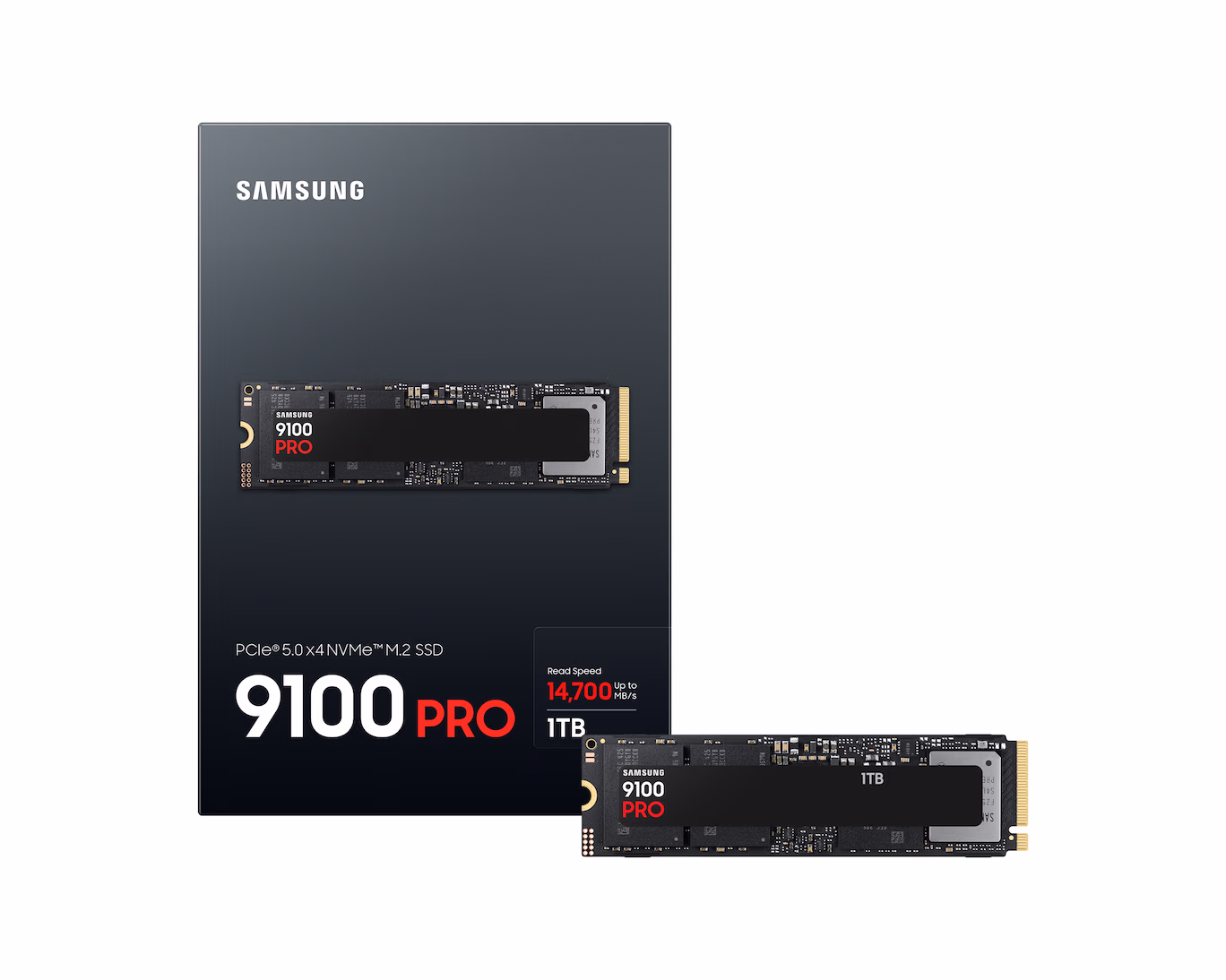

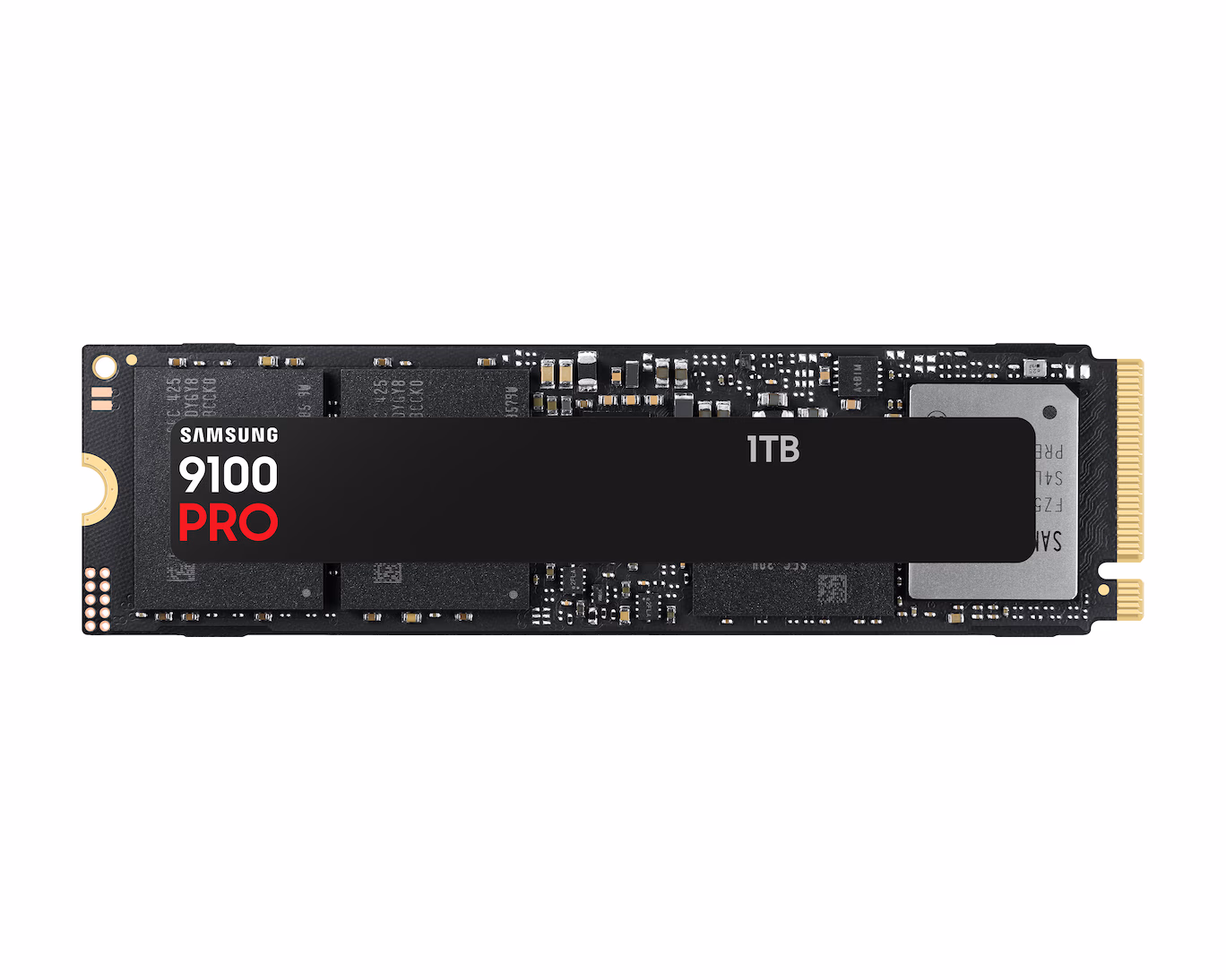

Samsung 9100 PRO, 1TB, PCIe 5.0, NVMe M.2 SSD

Technical Specifications

General

• Brand: Samsung
• Series: 9100 PRO
• Interface: PCIe 5.0 x4, NVMe 2.0
• Form Factor: M.2 2280
• Storage Type: Internal Solid State Drive (SSD)

Performance

• Sequential Read Speed: Up to 14,800 MB/s
• Sequential Write Speed: Up to 13,400 MB/s
• Random Read Speed: Up to 2,200K IOPS
• Random Write Speed: Up to 2,600K IOPS

Features

• NAND Flash: Samsung V-NAND TLC
• Controller: Samsung In-House Controller
• TRIM Support: Yes
• S.M.A.R.T Support: Yes
• Garbage Collection: Yes
• AES Encryption: 256-bit AES
• TCG Opal Support: Yes
• Microsoft eDrive Support: Yes

Endurance & Reliability

• MTBF: 1.5 Million Hours
• Warranty: Limited 5-Year Warranty
• Endurance (TBW): 600TBW

Compatibility

Compatible With:

• PCIe 5.0 M.2 motherboards
• PCIe 4.0 systems (backward compatible)
• Desktop PCs
• Workstations
• Gaming PCs
• Windows systems supporting NVMe SSDs

Physical

• Form Factor: M.2 2280
• Interface Connector: M-Key
• Dimensions: 80.15 × 22.15 × 2.38 mm
