- Stock: In Stock
- Brand: GIGABYTE
- Model: B850 GAMING X WIFI6E
🔌 Core Support
-
Socket: AMD AM5 – Supports Ryzen 9000/8000/7000 Series
-
Chipset: B850
-
VRM: 8+2+2 Twin Digital Phases with 6-layer PCB and 2oz copper for stable power delivery
🧠 Memory
-
DIMM Slots: 4 × DDR5 (Dual Channel)
-
Max Speed: Up to 8,200 MT/s with EXPO/XMP overclocking support
💾 Storage & Expansion
-
M.2 Slots: 3 total
-
1 × PCIe 5.0 x4
-
2 × PCIe 4.0 x4
-
-
SATA: 4 × SATA 6 Gbps ports
-
PCIe Slots:
-
1 × PCIe 5.0 x16
-
3 × PCIe 3.0 x1
-
🌐 Connectivity
-
LAN: 2.5 GbE Ethernet
-
Wi-Fi: Wi-Fi 6E with high-gain antenna
-

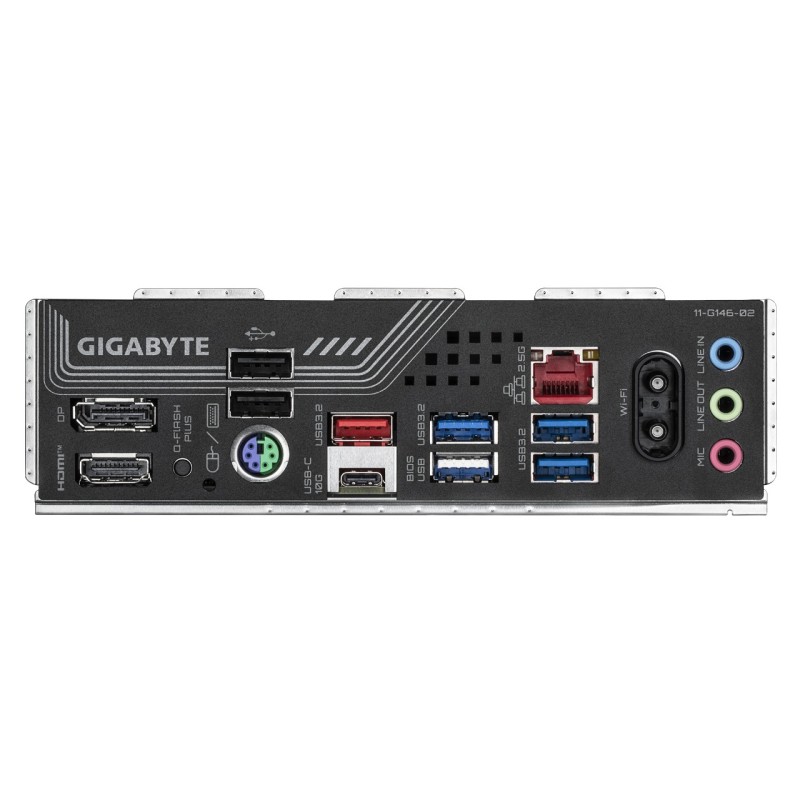

Rear I/O Ports:
-
1 × DisplayPort
-
1 × HDMI
-
1 × USB 3.2 Gen 2 Type-C (also supports 20 Gbps front panel connection)
-
1 × USB 3.2 Gen 2 Type-A
-
3 × USB 3.2 Gen 1
-
3 × USB 2.0
-
🎧 Audio
-
8-channel high-definition Realtek audio with high-quality capacitors
❄️ Cooling & Thermals
-
Smart Fan 6: 6× PWM/DC fan headers with advanced dual-curve control
-
VRM Thermal Armor Advanced with high-conductivity pads and integrated I/O shield
-
M.2 Thermal Guard: Protects SSDs from thermal throttling
💡 DIY & Usability Features
-
Q-Flash Plus: Update BIOS without CPU, RAM, or GPU
-
EZ-Latch Plus: Tool-free PCIe and M.2 installation
-
EZ-Debug Zone: Onboard diagnostic LEDs and buttons for easier troubleshooting
🎮 Gaming & Performance Enhancements
-
X3D Turbo Mode: One-click performance boost for Ryzen X3D and non-X3D CPUs, improving FPS by up to 18%
-
D5 Bionic Corsa: AI-powered DDR5 memory tuning for maximum speed
-
Auto OC & AI Snatch: Simplified CPU and memory overclocking
-
AI-ViaFusion: Optimized PCB design leveraging AI algorithms
🌈 Extras & Aesthetics
-
RGB Fusion: 1 standard RGB and 3 ARGB Gen 2 headers for synchronized lighting across compatible devices
-
EZ-Firmware: Easy BIOS interface with integrated real-time monitoring
📏 Key Specifications
-
Form Factor: ATX
-
Max Memory Capacity: 192 GB DDR5
-
USB Ports: 8 rear USB ports (including USB-C), plus internal headers
-
PCIe Riser Support: PCIe 5.0 ready for next-gen GPUs
-
Advanced BIOS: Feature-rich UEFI BIOS with intuitive navigation
