- Stock: In Stock
- Brand: Fractal
- Model: Lumen S24 RGB V2

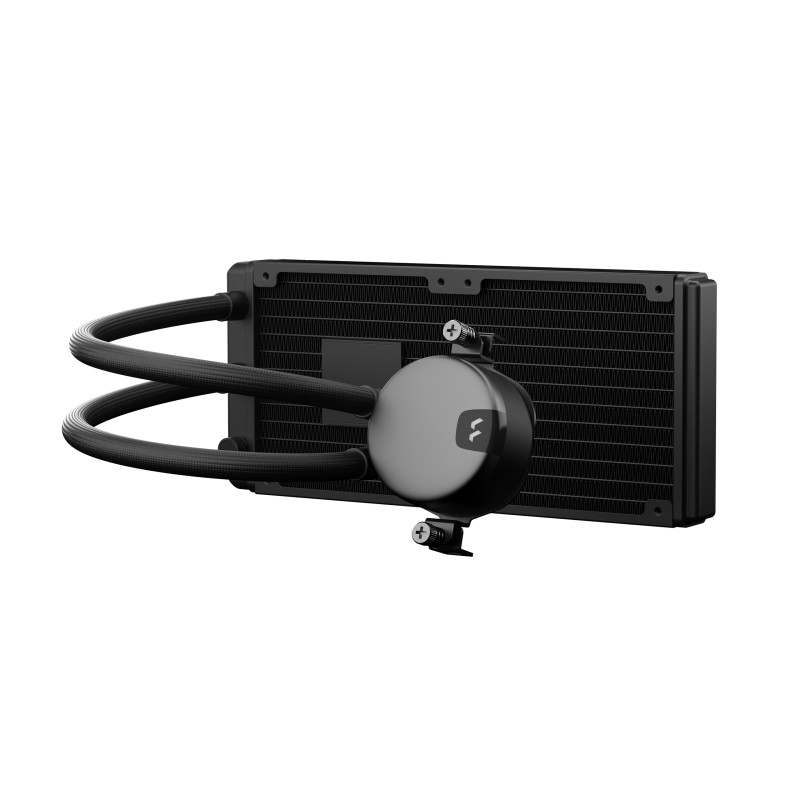

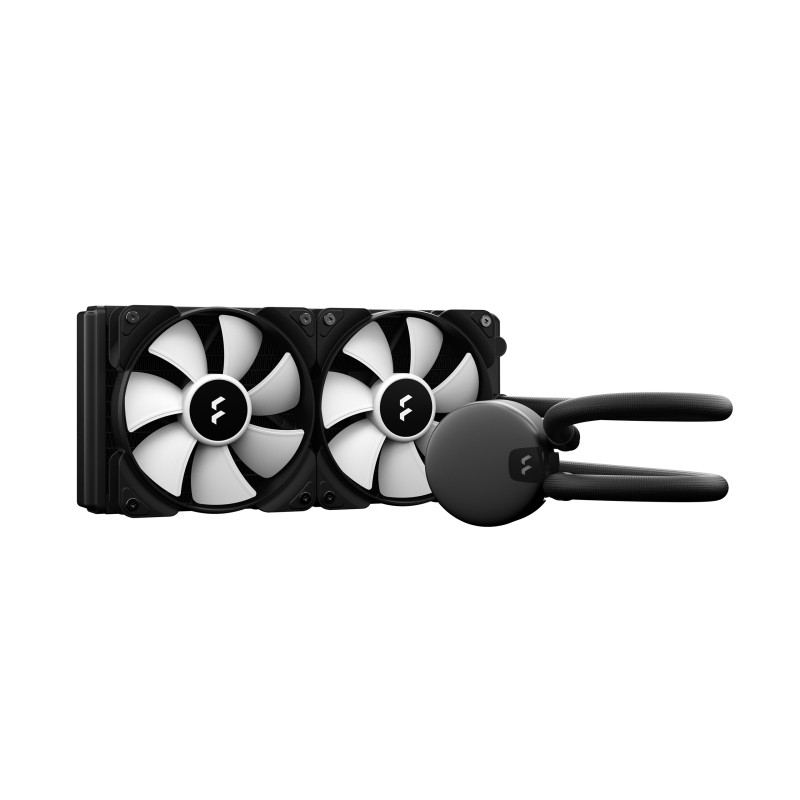

💧 Fractal Design Lumen S24 RGB – Advanced Cooling with Striking Aesthetics
Product Code: FD-W-L1-S2412
EAN: 7340172705932
UPC: 843276105938
JAN: 4537694317610
⚙️ Universal Socket Compatibility
Whether you're on Intel or AMD, the Lumen S24 RGB has you covered:
Intel sockets:
LGA 1700* / 1851* / 1200 / 115x / 1366 / 2011 / 2011-3 / 2066
(*For LGA 1700 or 1851, updated bracket required—contact Fractal Support if using older version.)AMD sockets:
AM5 / AM4 / FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
❄️ Premium Cooling Performance
Cold plate: Pure copper for optimal heat transfer
Thermal paste: Pre-applied for easy installation
Pump speed: 4000 ±10% RPM with ceramic bearing
Pump noise: Quiet 22 dBA at full speed
Tube material: Low-permeability rubber with braided nylon sleeves
Tube length: 400 mm
🔄 Flexible, Durable Tubing
Fittings (block side): Articulating 90° elbows for easier routing
Fittings (radiator side): Barbed for secure sealing
Block size:
Height: 43 mm
Width: 79 mm
Diameter: 67 mm

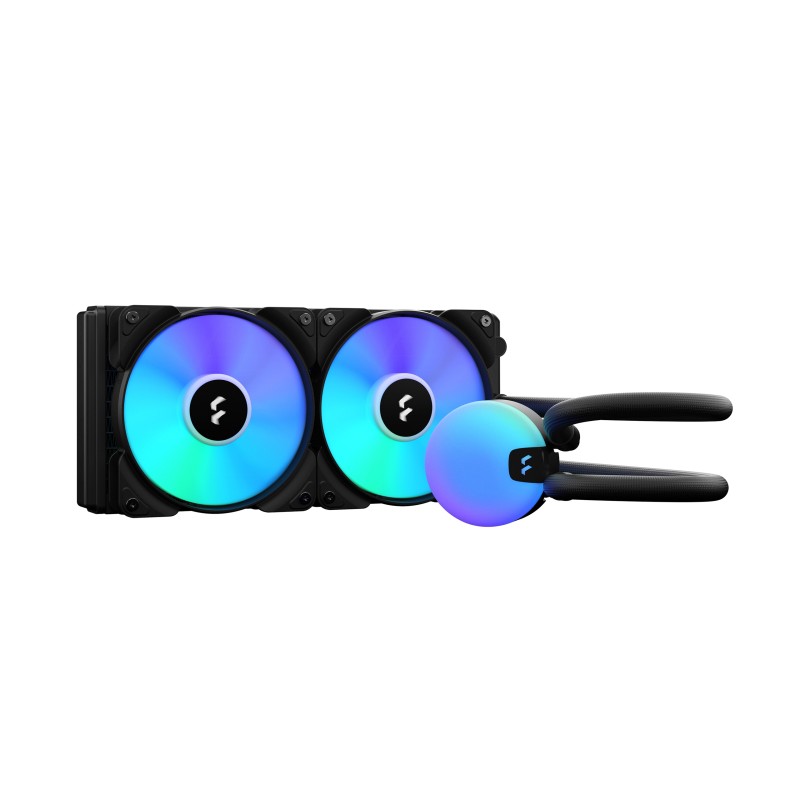

🌈 Aspect 12 RGB PWM Fans
Fan speed: 500–2000 RPM
Bearing: Long-life rifle bearings
Noise level: Whisper-quiet <10–33.2 dBA
Airflow: 13–56 CFM
Static pressure: 0.230–2.34 mm H₂O
PWM support: Yes
ARGB lighting: 5V ARGB header supported
MTTF: 90,000 hours
🛠️ Radiator Specifications
Size: 272 x 120 x 27 mm
Material: Full aluminum (housing + fins)
Thread type: 6-32 standard fan screws

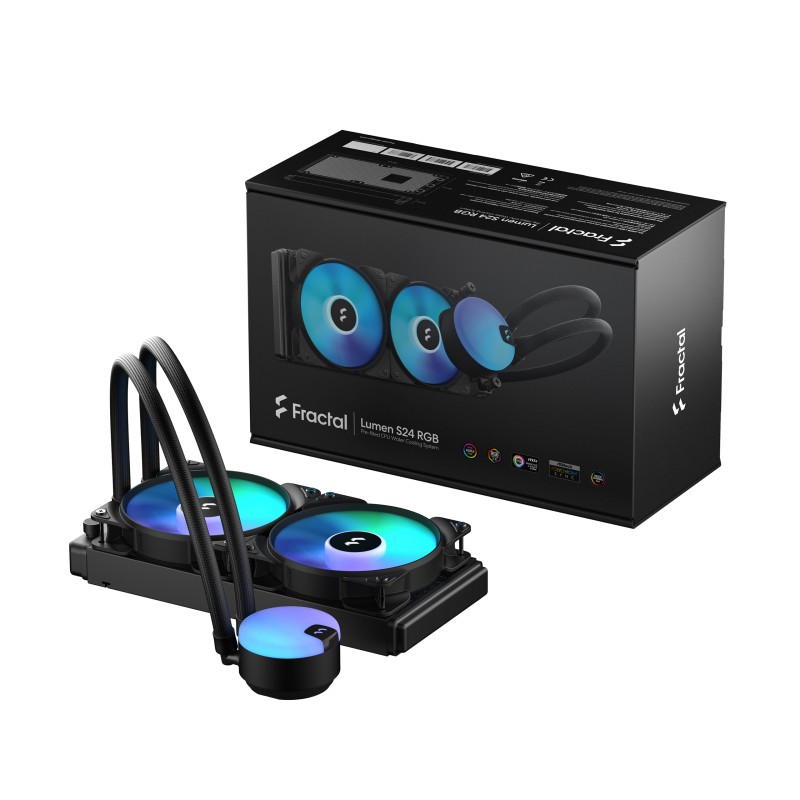

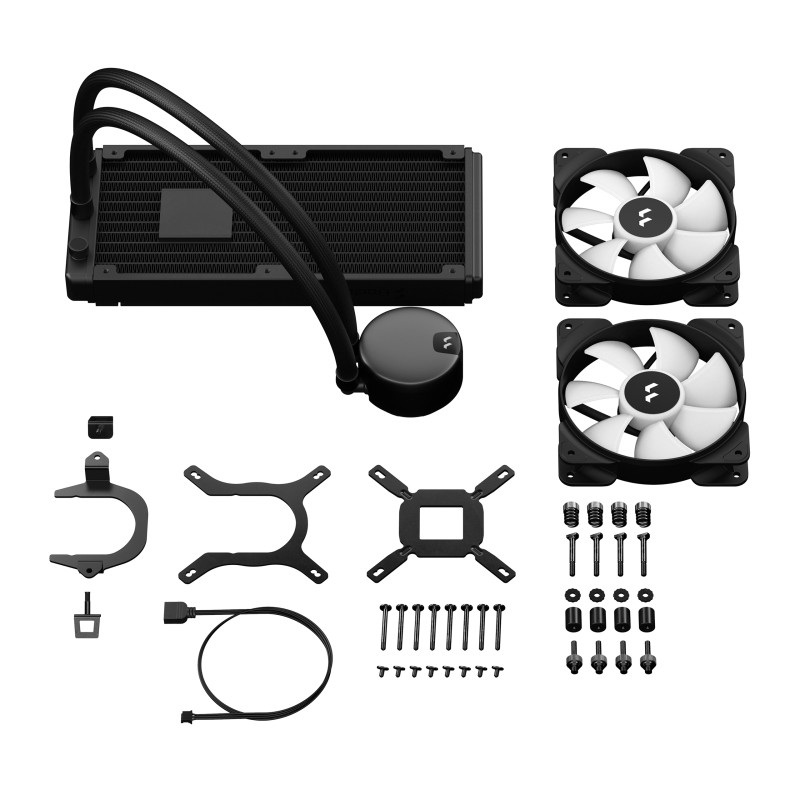

📦 Package Contents
CPU Cooler with pre-attached pump block and tubing
2 × Aspect 12 RGB fans
Intel mounting kit
AMD mounting kit
5V ARGB cable
User manual
Package Dimensions: 332 × 205 × 137 mm
Gross Weight: 1.77 kg
🧊 Designed for Performance. Built for Looks.
Whether you're building a quiet workstation or a dazzling gaming rig, the Lumen S24 RGB delivers premium thermal performance, clean installation, and vibrant lighting effects in a robust 240mm form factor.
