- Stock: In Stock
- Brand: GIGABYTE

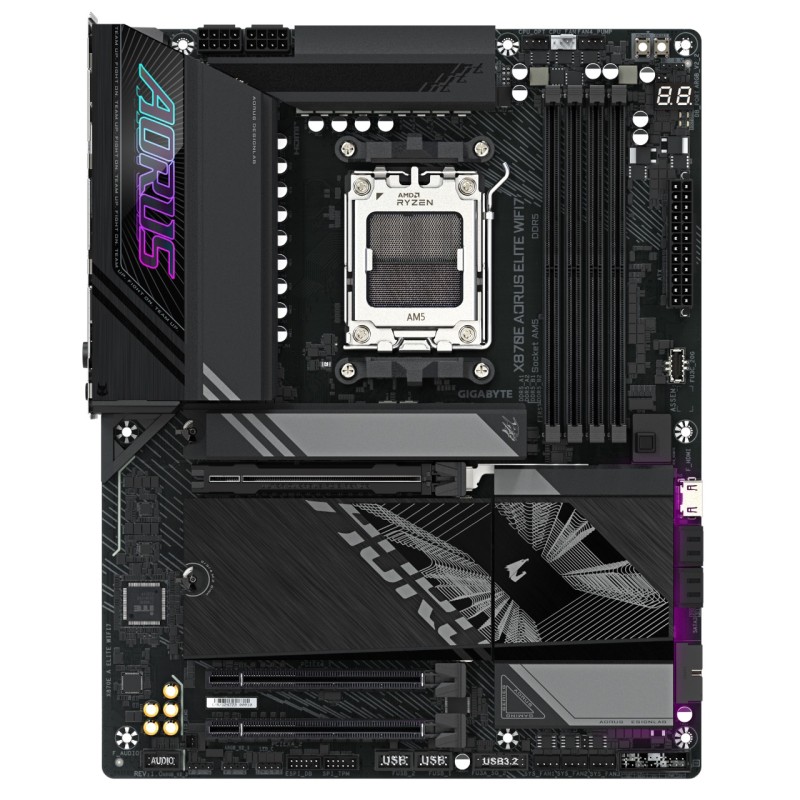

- Model: X870E A ELITE WIFI7 1.1
🧠 Processor & Chipset
-
CPU Socket: AMD AM5
-
Compatible CPUs: Ryzen™ 9000 / 8000 / 7000 Series
-
Chipset: AMD X870E
💾 Memory Support
-
4 × DDR5 DIMM Slots, Dual Channel
-
Up to 256GB, speeds up to DDR5-8200(OC)
-
AMD EXPO™ & Intel XMP profile support
-
Non-ECC, unbuffered DIMMs
🎮 Graphics Outputs
-
USB4 Display Output:
-
2 × USB4® Type-C, DP 1.4, up to 3840×2160@240Hz
-
-
HDMI Ports:
-
Rear HDMI 2.1: 4096×2160@60Hz
-
Front HDMI 1.4: 1920×1080@30Hz
-
-
Supports up to 4 displays
🎧 Audio
-
Realtek® ALC1220 Codec
-
Supports 7.1 Surround Sound & DSD Audio
-
Optical S/PDIF Out
🌐 Networking
-
Realtek® 2.5GbE LAN
-

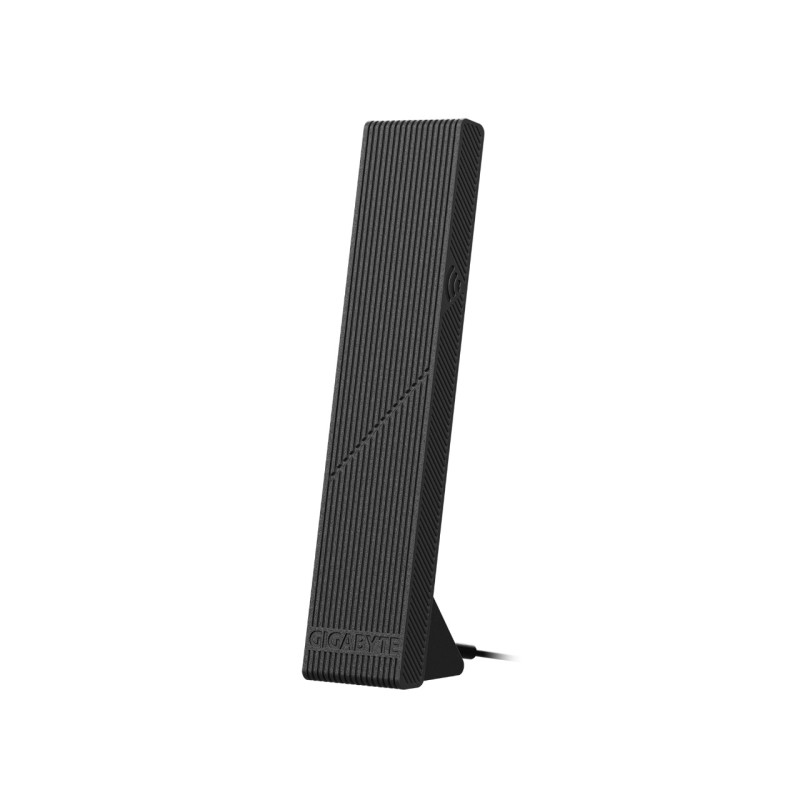

Wi-Fi 7 + Bluetooth 5.4
-
MediaTek MT7925 (rev. 1.0) or Realtek RTL8922AE (rev. 1.1/1.2)
-
Windows 11 SV3 required for full Wi-Fi 7 features
-
⚙️ Expansion Slots
-
1 × PCIe 5.0 x16 (CPU)
-
Shared bandwidth with M2B/M2C – drops to x8 when populated
-
-
1 × PCIe 4.0 x4 (Chipset)
-
1 × PCIe 3.0 x4 (Chipset)
🚀 Storage Options
-
M.2 Slots:
-
1 × PCIe 5.0 x4 (M2A_CPU, up to 25110)
-
2 × PCIe 5.0 x4 (M2B/M2C_CPU, 22110/2280) – Disabled with Ryzen 8000 Phoenix CPUs
-
1 × PCIe 4.0 x4 (M2D_SB, Chipset)
-
-
SATA:
-
4 × SATA 6Gb/s
-
NVMe RAID 0/1/5/10 (RAID 5 for Ryzen 9000 only)
-
SATA RAID 0/1/10
-
🔌 USB Connectivity
-

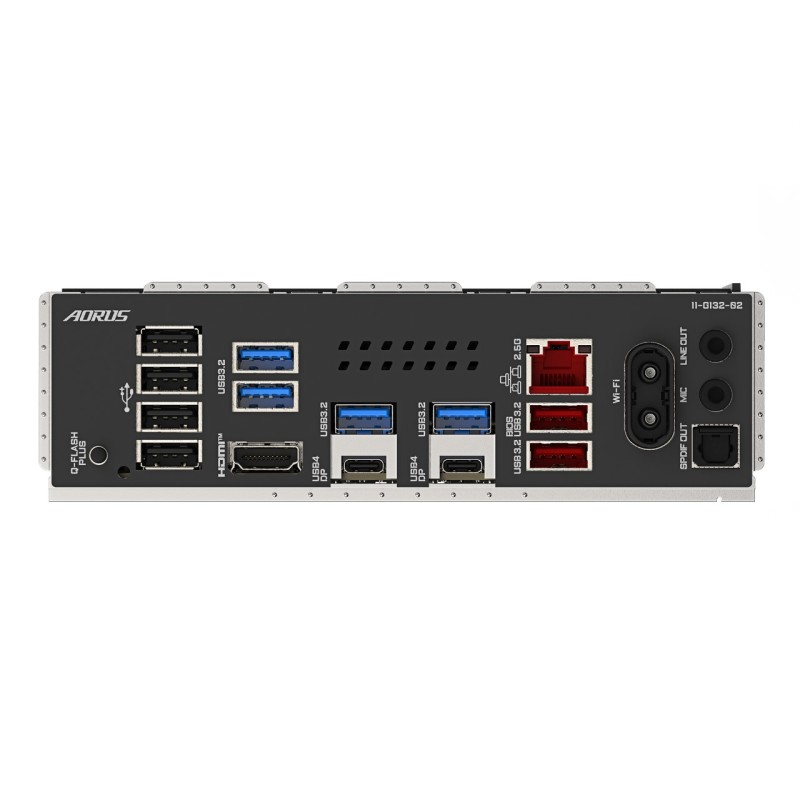

Rear Panel:
-
2 × USB4® Type-C
-
2 × USB 3.2 Gen 2 (Type-A)
-
4 × USB 3.2 Gen 1
-
4 × USB 2.0
-
-
Internal Headers:
-
USB 3.2 Gen 2x2 (Type-C)
-
7 × USB 3.2 Gen 1 (1 rear, 6 internal)
-
8 × USB 2.0 (4 rear, 4 internal)
-
🌈 Cooling & RGB
-
1 × CPU Fan + 1 × Pump Header
-
4 × Chassis/System Fan Headers
-
3 × Addressable RGB Gen2
-
1 × RGB Header
🛠️ Extras & Features
-
Q-Flash & Q-Flash Plus BIOS Update
-
Onboard Power & Reset Buttons
-
TPM header, Clear CMOS
-
GCC Software Suite
-
Windows 11 64-bit support only
-
ATX (30.5 × 24.4 cm)
