- Stock: In Stock
- Brand: GIGABYTE
- Model: X870E AORUS MASTER

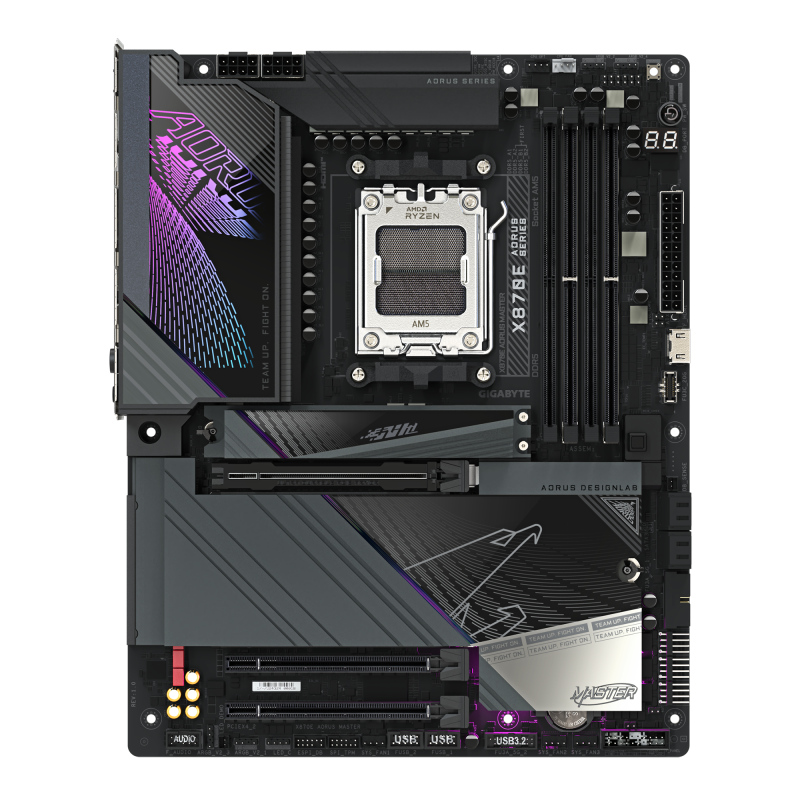

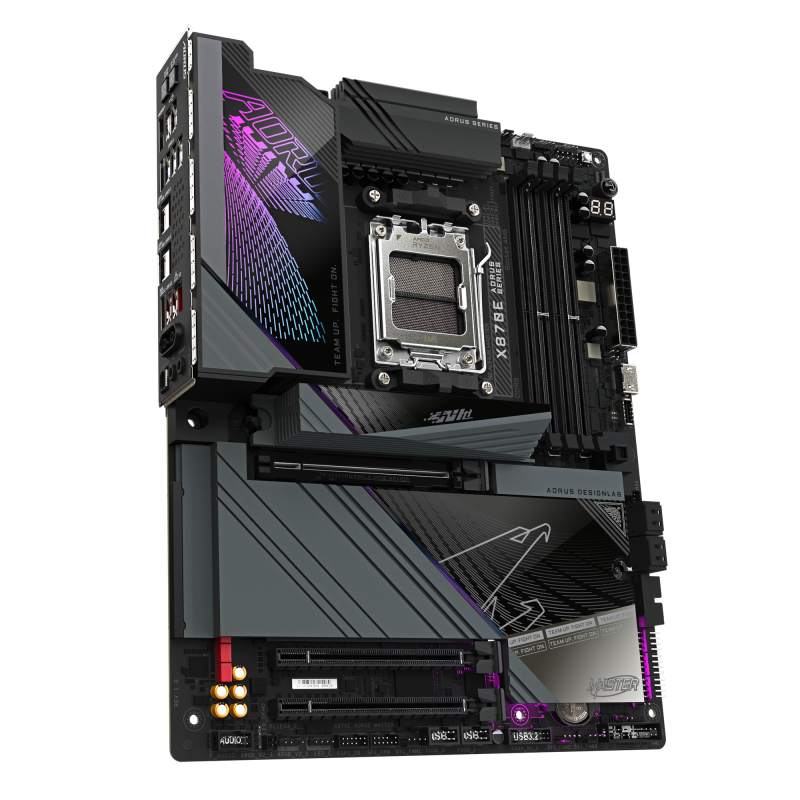

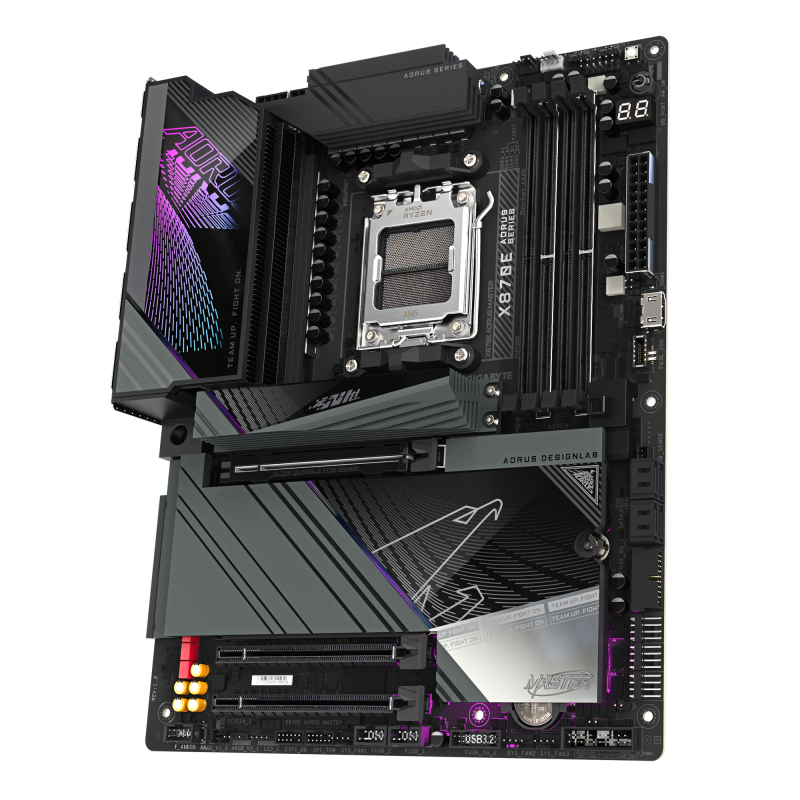

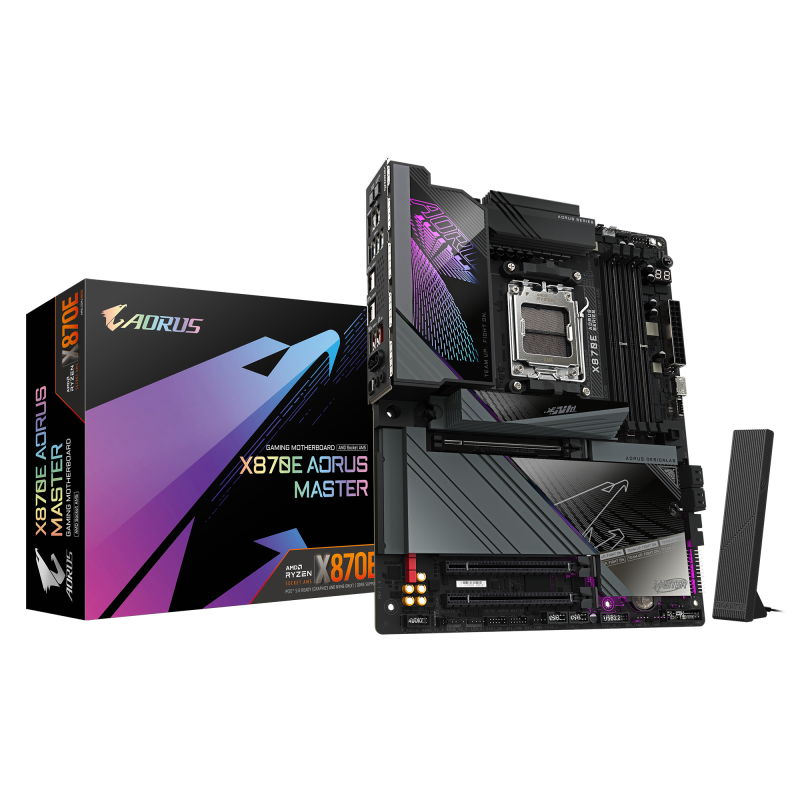

🔧 Gigabyte X870E AORUS MASTER – ATX AM5 Motherboard
⚙️ Processor & Chipset
CPU Socket: AMD AM5 – Supports Ryzen™ 7000 / 8000 / 9000 Series
Chipset: AMD X870E
🧠 Memory
4 × DDR5 DIMM slots (dual channel), up to 256 GB
Memory Speeds: Up to 8600 MT/s (OC) with AMD EXPO™
🚀 Storage & Expansion
M.2 Slots: 3 × PCIe 5.0 ×4 + 1 × PCIe 4.0 ×4
SATA Ports: 4 × SATA 6 Gb/s
PCIe Slots:
• 1 × PCIe 5.0 ×16 (reinforced UD Slot X)
• 1 × PCIe 4.0 ×4
• 1 × PCIe 3.0 ×4
🌐 Connectivity
LAN: 5 GbE Ethernet

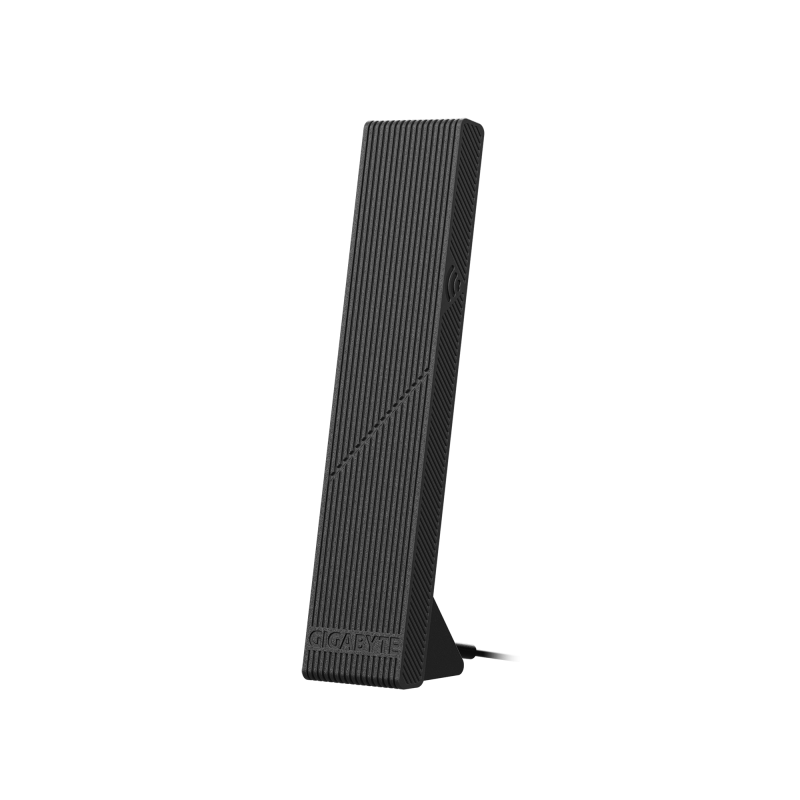

Wireless: Wi‑Fi 7 (802.11be) + Bluetooth 5.3 with ultra‑gain antenna
USB4: 2 × USB4 Type-C (40 Gbps + DisplayPort Alt)
🖥️ Display Outputs
1 × HDMI 2.1
Sensor Panel Link: Internal HDMI output for chassis screen
🔌 USB Interfaces

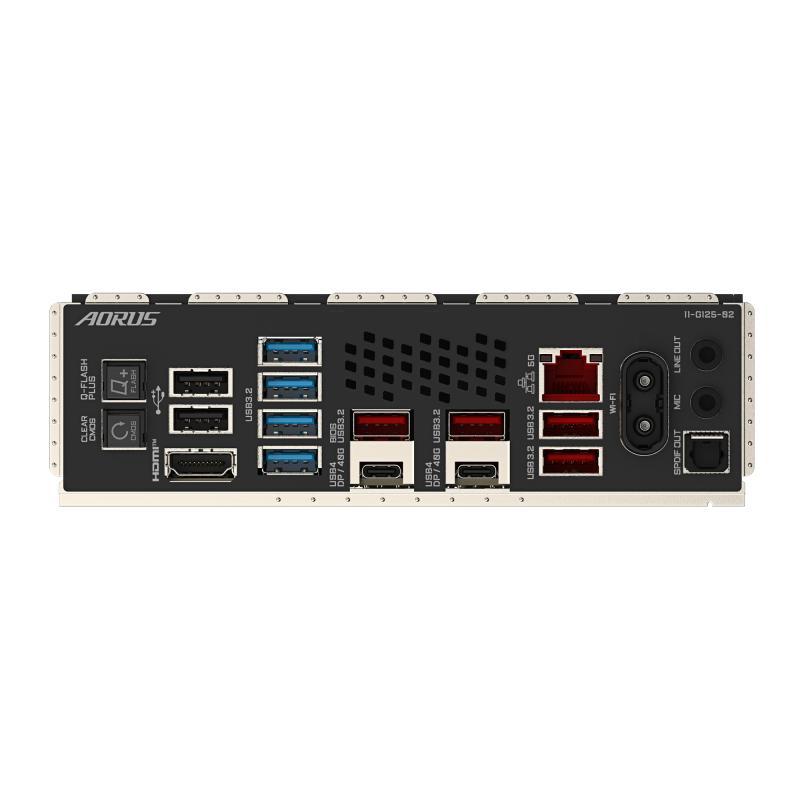

Rear I/O: 4 × USB 3.2 Gen2, 4 × USB 3.2 Gen1, 2 × USB2.0, plus 2 × USB4 Type-C
Internal Headers: 1 × USB3.2 Gen2x2 Type-C, additional USB3/2.0 headers
🔊 Audio
Realtek® ALC1220 – 7.1‑channel HD audio with audiophile capacitors
❄️ Power & Cooling
VRM: Digital 16+2+2 phase with 110 A Smart Power Stages

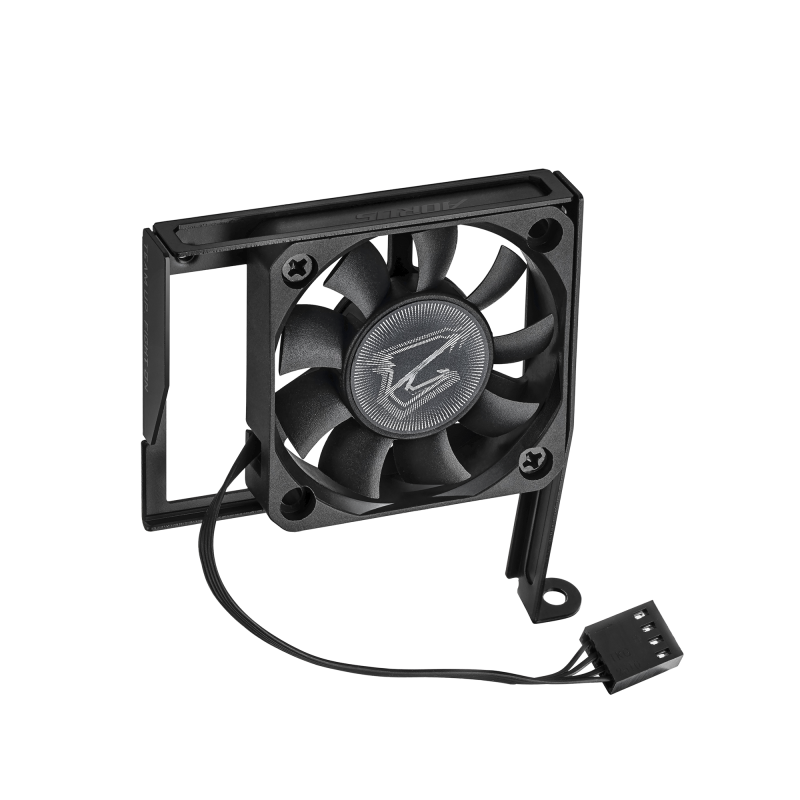

Thermal features: VRM Thermal Armor, M.2 Thermal Guard XL, DDR Wind Blade active cooling
Fan Headers: Smart Fan 6 with 8 × PWM/DC fan headers
🛠️ Unique Features
Q‑Flash Plus, Debug LEDs, onboard power/reset buttons
Magnetic M.2 EZ‑Match, screwless EZ‑Latch for PCIe/M.2
RGB Headers: 1 × RGB, 4 × ARGB Gen2
📏 Form Factor
ATX – 305 × 244 mm
