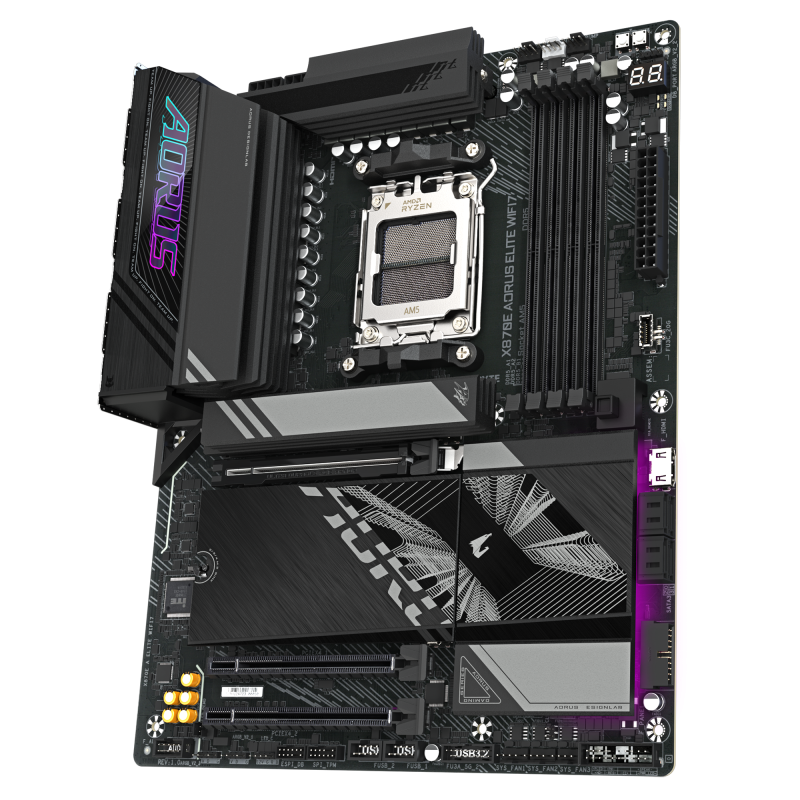

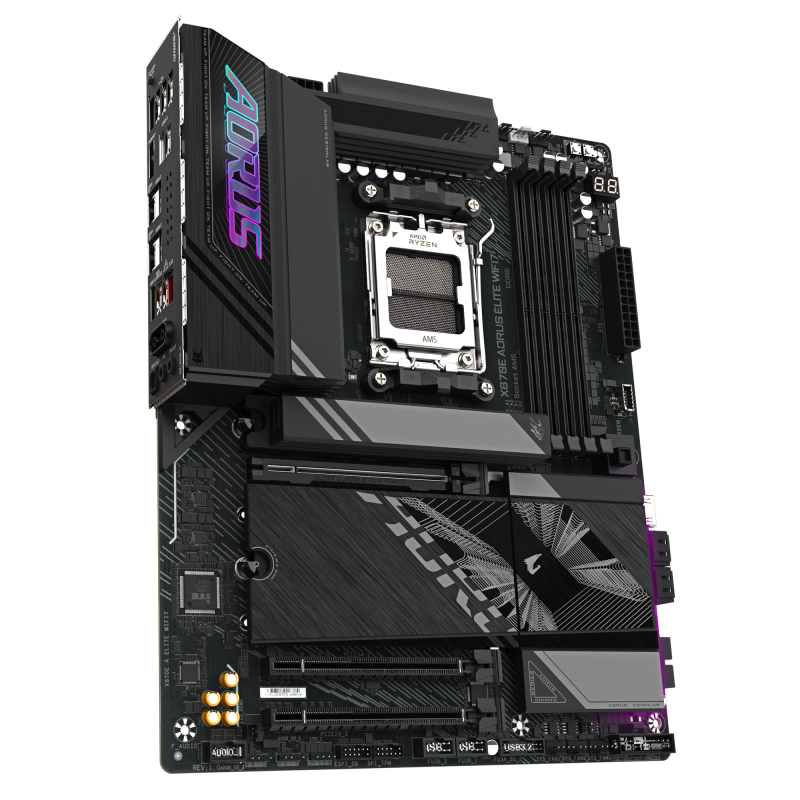

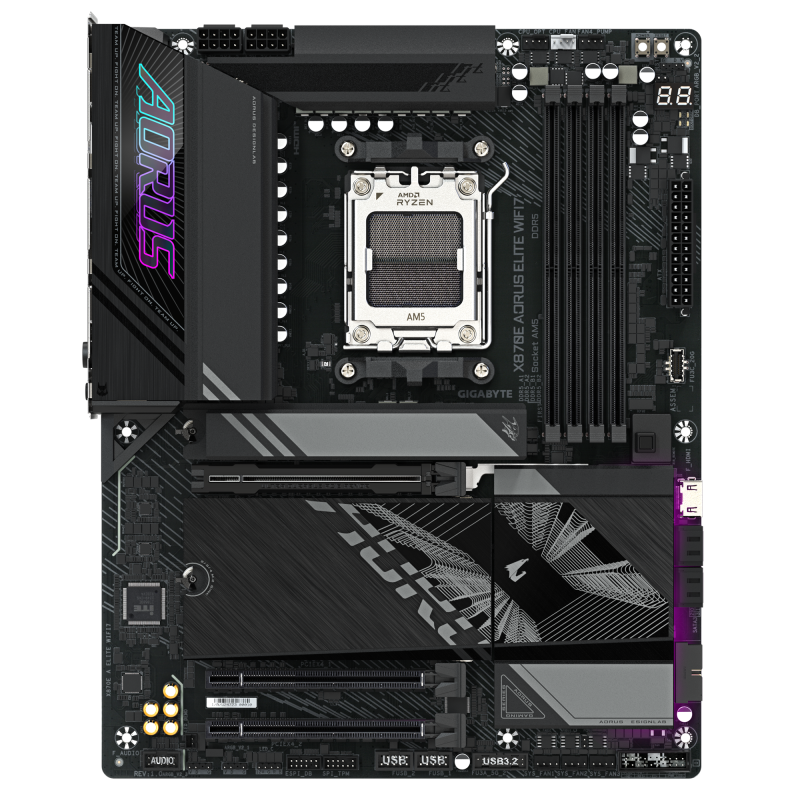

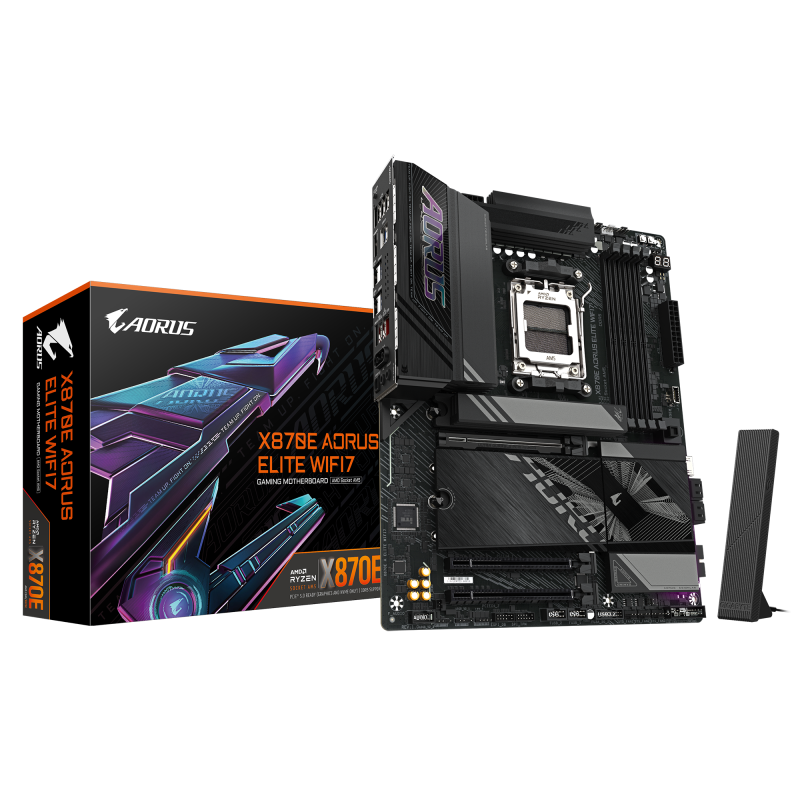

Gigabyte X870E AORUS ELITE WIFI7 ICE 1.1

CPU Support

• AMD Socket AM5

• Compatible with:

  • Ryzen™ 9000 Series

  • Ryzen™ 8000 Series

  • Ryzen™ 7000 Series

• Check GIGABYTE website for latest CPU support list.

Chipset

• AMD X870E

Memory

• Supports DDR5 up to 8200+ MT/s (OC)

• Supported speeds: 8200 / 8000 / 7800 / 7600 / 7200 / 7000 / 6800 / 6666 / 6600 / 6400 / 6200 / 6000 (OC)

• 4 × DDR5 DIMM slots

• Maximum capacity: 256GB (4×64GB)

• Dual-channel architecture

• Supports:

  • Non-ECC Unbuffered DIMMs

  • AMD EXPO™ & Intel XMP profiles

• Actual speed depends on CPU & memory configuration.

Graphics (Integrated GPU Support)

USB4 Type-C (Back Panel)

Via AMD Radeon™ Graphics + ASMedia USB4 Controller:

• 2 × USB4 Type-C (DP output)

• Resolution: 3840×2160 @ 240Hz

• DisplayPort 1.4 + HDR support

HDMI Ports

• Rear HDMI:

  • Resolution: 4096×2160 @ 60Hz

  • HDMI 2.1, HDCP 2.3, HDR

• Front HDMI:

  • Resolution: 1920×1080 @ 30Hz

  • HDMI 1.4

Supports up to four displays simultaneously
(Depends on CPU GPU capability)

Audio

• Realtek ALC1220 High-Definition Audio Codec

• 2/4/5.1/7.1-channel support

• S/PDIF Out

• DSD playback supported through line-out

Networking

LAN

• Realtek 2.5GbE LAN

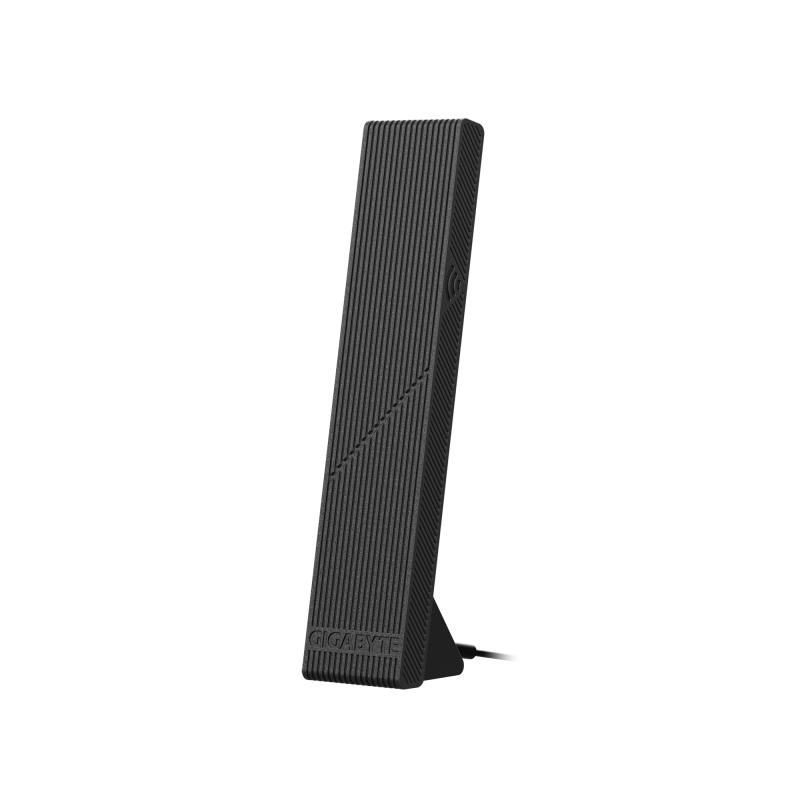

Wi-Fi 7 + Bluetooth 5.4

Two possible modules depending on board revision:

• MediaTek MT7925 (PCB rev 1.0)

• Realtek RTL8922AE (PCB rev 1.1/1.2)

• Supports 2.4 / 5 / 6 GHz + 11be (160MHz)

Wi-Fi 7 requires Windows 11 SV3.

Expansion Slots

CPU PCIe Lanes

• 1 × PCIe x16 slot

  • Ryzen 9000/7000: PCIe 5.0 x16

  • Ryzen 8000 Phoenix 1: PCIe 4.0 x8

  • Ryzen 8000 Phoenix 2: PCIe 4.0 x4

If M2B_CPU or M2C_CPU is used ➝ GPU slot drops to x8.

Chipset Slots

• 1 × PCIe 4.0 x4 (PCIEX4_1)

• 1 × PCIe 3.0 x4 (PCIEX4_2)

Storage

M.2 Slots

1. M2A_CPU (CPU PCIe lanes)

   • 25110 / 22110 / 2280 / 2580 SSDs

   • Ryzen 9000/7000: PCIe 5.0 x4/x2

   • Ryzen 8000: PCIe 4.0 x4/x2

2. M2B_CPU & M2C_CPU

   • 22110 / 2280 SSDs

   • PCIe 5.0 x4/x2 (Ryzen 9000/7000)

   • Disabled with Ryzen 8000 Series APUs

3. M2D_SB (Chipset)

   • 22110 / 2280

   • PCIe 4.0 x4/x2

SATA

• 4 × SATA 6Gb/s

• RAID support:

  • RAID 0/1/5/10 for NVMe (RAID 5 only on Ryzen 9000)

  • RAID 0/1/10 for SATA

USB

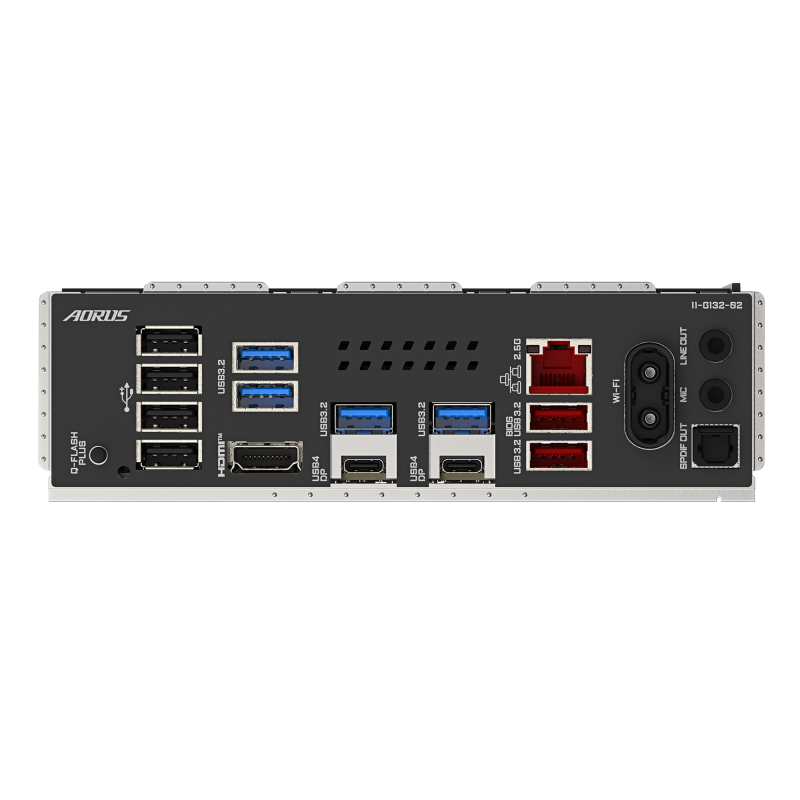

Back Panel

• 2 × USB4 Type-C (DP capable)

• 4 × USB 3.2 Gen 1

• 2 × USB 3.2 Gen 2 (red)

• 4 × USB 2.0

• 1 × HDMI

• 1 × RJ-45

• 1 × Optical S/PDIF

• 2 × Wi-Fi antenna connectors

• Q-Flash Plus button

Internal Headers

• 1 × USB 3.2 Gen 2×2 Type-C

• 2 × USB 3.2 Gen 1

• 2 × USB 2.0

• 4 × SATA

• RGB/ARGB headers

• Fans & pumps

• TPM header

Cooling & Monitoring

• CPU fan header

• CPU fan/pump header

• 3 × system fan headers

• 1 × system fan/pump header

• Water flow monitoring

• Fan speed control

• Noise detection

BIOS

• 256 Mbit AMI UEFI BIOS

• Supports:

  • Q-Flash

  • Q-Flash Plus

  • Smart Backup

Software

• Norton Internet Security OEM

• LAN management software

Operating System

• Windows 11 64-bit

Form Factor

• ATX – 30.5cm × 24.4cm
