📑 Specifications

🖥️ CPU & Chipset

• Socket: AM5

• Chipset: AMD X870

• Supported Processors: AMD Ryzen™ 9000 / 8000 / 7000 Series

🧠 Memory

• Memory Type: DDR5

• Memory Slots: 4 x DIMM

• Max Memory: Up to 256 GB

• Memory Speed: Up to 8200 MT/s (OC)

• Dual Channel Support: Yes

• Supported Features: AMD EXPO™ & XMP profiles

🎮 Expansion Slots

• PCIe x16: 1 x PCIe 5.0 x16 slot

• PCIe x1: 2 x PCIe 3.0 x1 slots

💾 Storage

• M.2 Slots:

  • 1 x PCIe 5.0 x4 (CPU Connected)

  • 1 x PCIe 4.0 x4 (Chipset)

  • 1 x PCIe 4.0 x2 (Chipset, shared bandwidth)

• SATA Ports: 4 x SATA 6Gb/s

• RAID Support: RAID 0, 1, 5 (for NVMe), RAID 0, 1, 10 (for SATA)

🌐 Networking

• LAN: Realtek® 2.5GbE LAN

• WiFi: Realtek® WiFi 6 (802.11ax)

• Bluetooth: Bluetooth 5.3

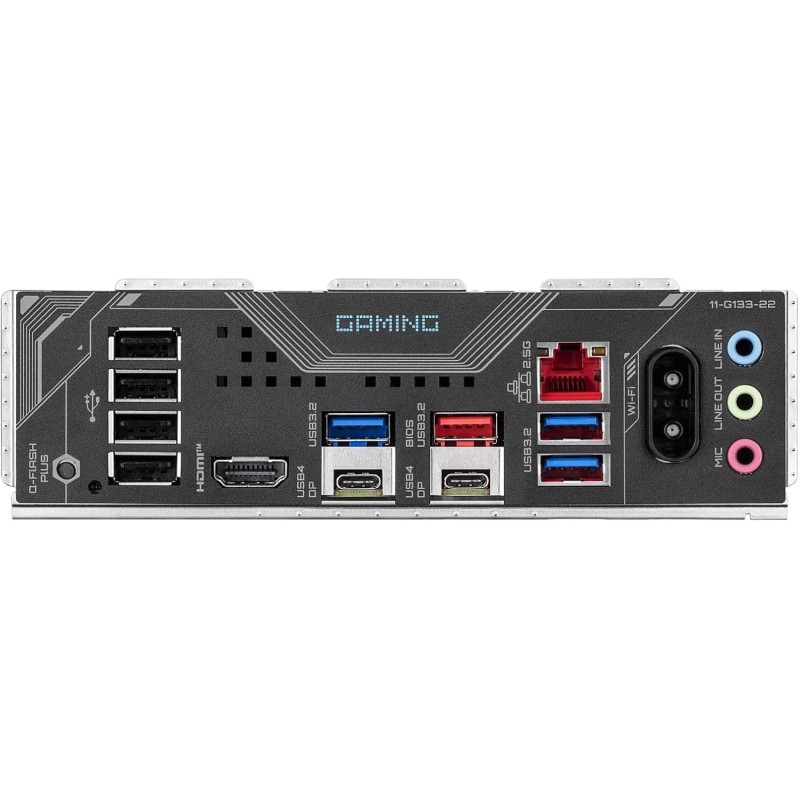

🔌 USB Connectivity

• USB4: 2 x USB Type-C® (rear, supports DisplayPort)

• USB 3.2 Gen 2 Type-A: 1 port (rear)

• USB 3.2 Gen 1: 3 ports (rear) + 2 ports (internal)

• USB 2.0: 4 ports (rear) + 8 ports (internal)

🎧 Audio

• Audio Codec: Realtek® High Definition Audio

• Channel Support: 2/4/5.1/7.1-channel audio

• Special Features: Configurable jacks via software

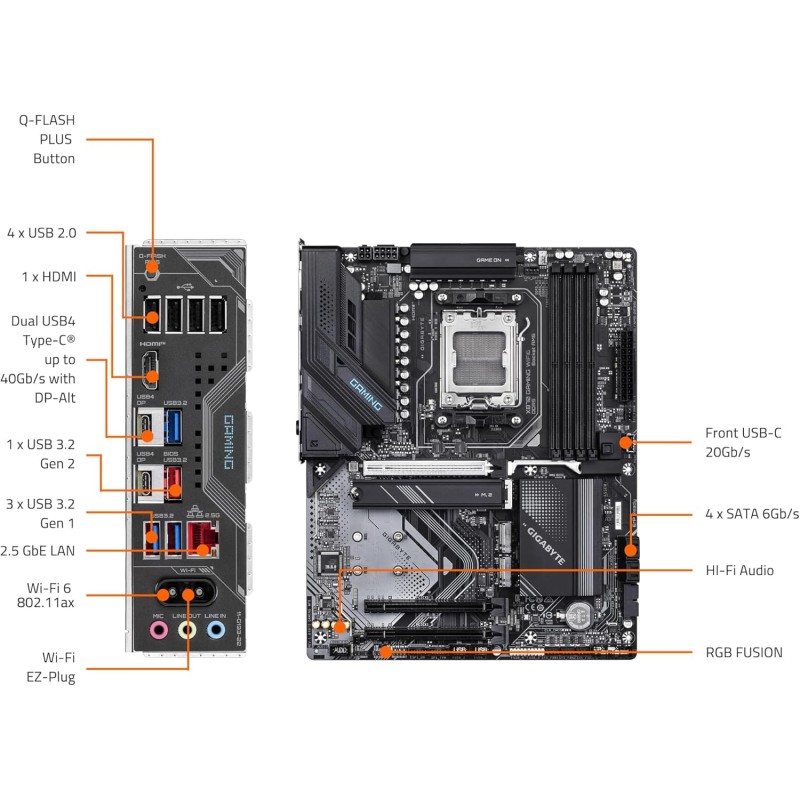

🛠️ Internal I/O Connectors

• 1 x 24-pin ATX Power Connector

• 1 x 8-pin + 1 x 4-pin ATX 12V Connectors

• CPU Fan, Water Cooling Pump, and 4 System Fan Headers

• 3 x Addressable RGB Gen2 Headers

• 1 x RGB LED Strip Header

• Trusted Platform Module (TPM) Header

• USB 3.2, USB 2.0, SATA, M.2 Connectors

📏 Form Factor

• Form Factor: ATX

• Dimensions: 30.5 cm x 24.4 cm

• Operating System Support: Windows 11 64-bit / Windows 10 64-bit
